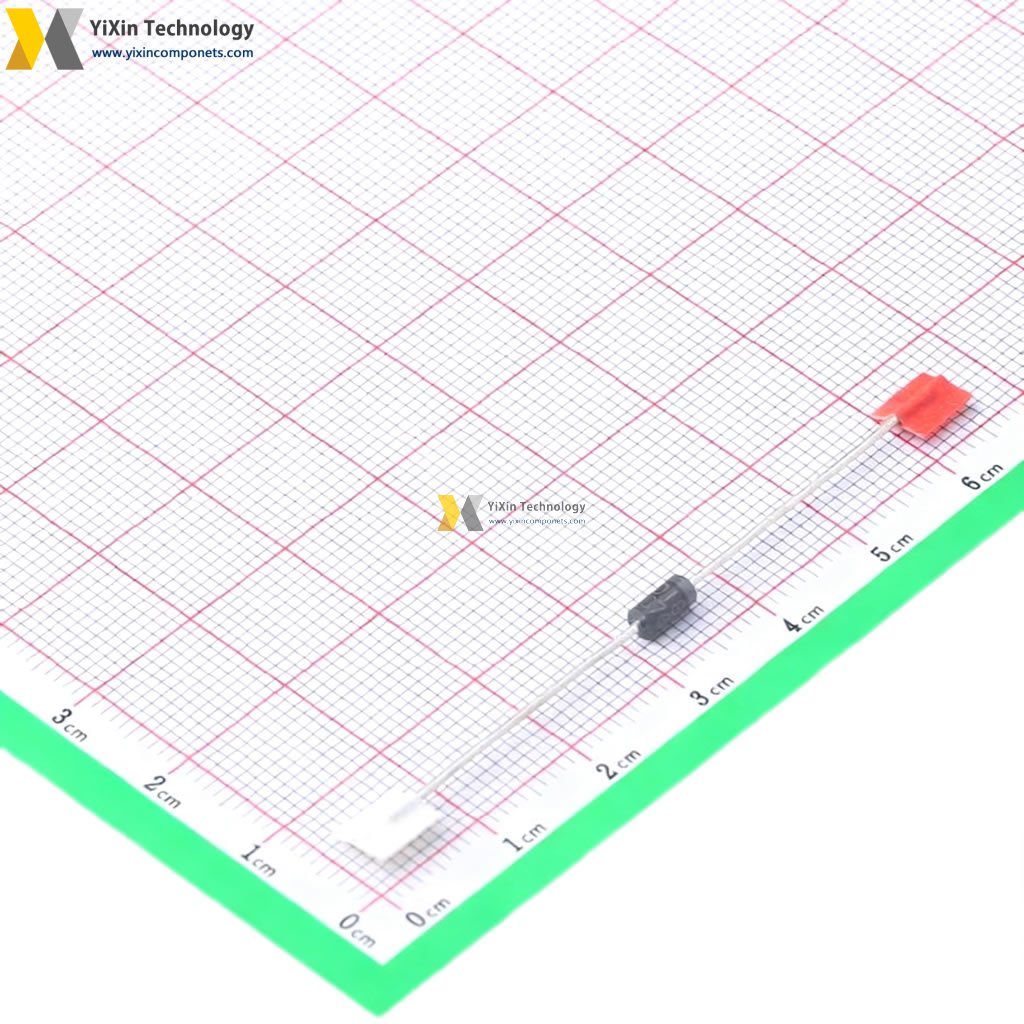

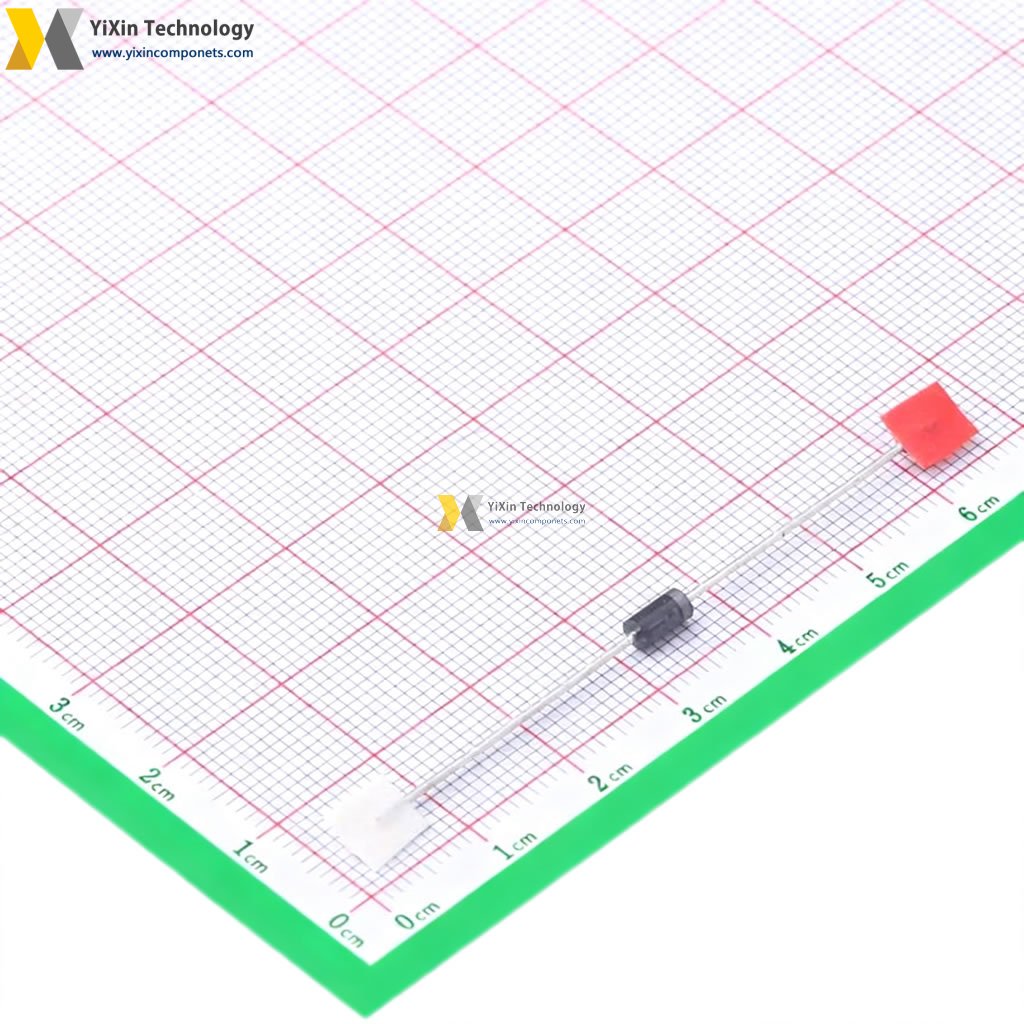

1N4007G-T
| Part Number | 1N4007G-T |
| Manufacturer | Diodes Incorporated |
| Category | Diodes & Rectifiers |
| Description | DIODE GEN PURP 1KV 1A DO41 |
1N4007G-T Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | 1N4007G-T PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Diodes Incorporated |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | - |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 1A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2µs |
| Current - Reverse Leakage @ Vr | 5µA @ 1000V |
| Capacitance @ Vr, F | 8pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -65°C ~ 175°C |
Quick Inquiry
| In Stock | 202419 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
Please fill out the form below. We will contact you as soon as possible.
Add to cart
You can first add the current product to the shopping cart and then make a one-time inquiry.
