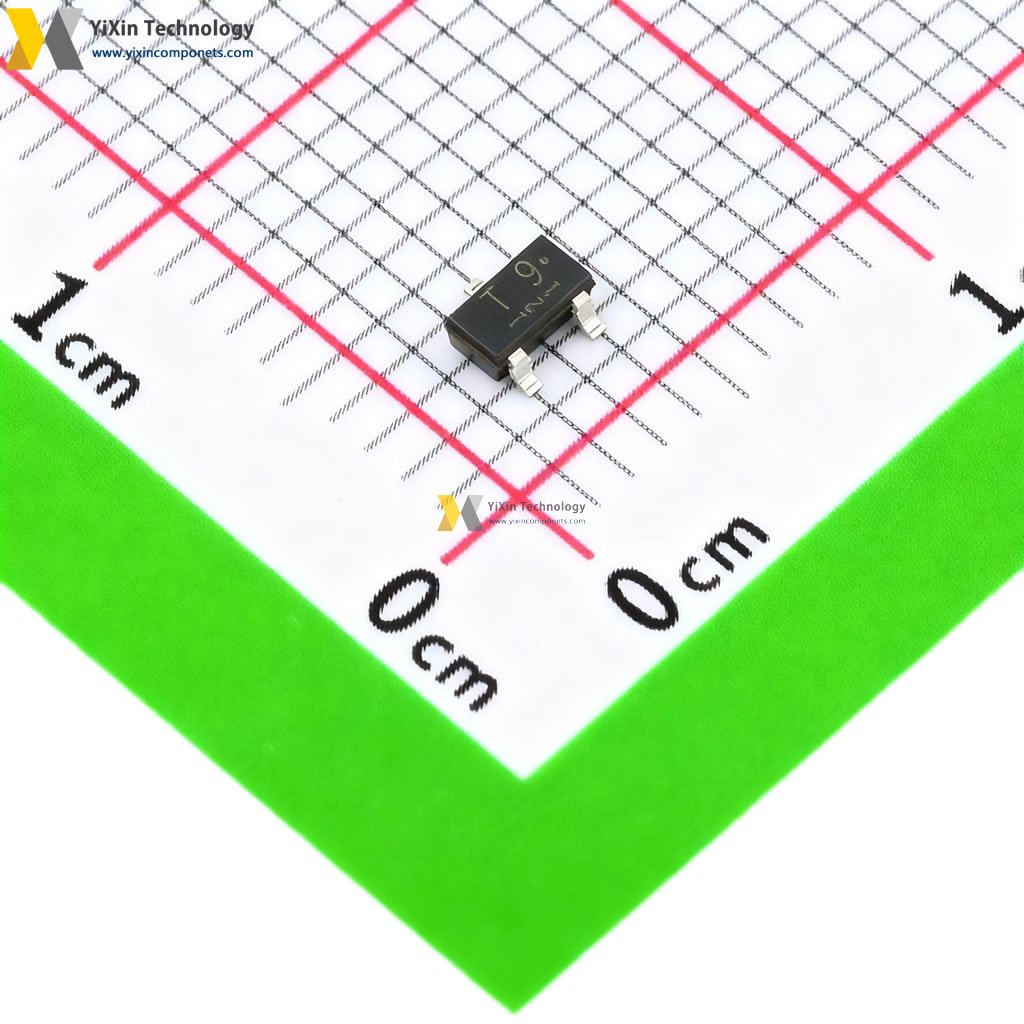

1SS396,LF
| Part Number | 1SS396,LF |
| Manufacturer | Toshiba Semiconductor and Storage |
| Category | Diodes & Rectifiers |
| Description | DIODE SCHOTKY 40V 70MA SMINI |
1SS396,LF Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | 1SS396,LF PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Toshiba Semiconductor and Storage |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Arrays |
| Series | - |
| Diode Configuration | 1 Pair Series Connection |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) (per Diode) | 70mA |
| Voltage - Forward (Vf) (Max) @ If | 360mV @ 10mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 5µA @ 40V |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | S-Mini |
