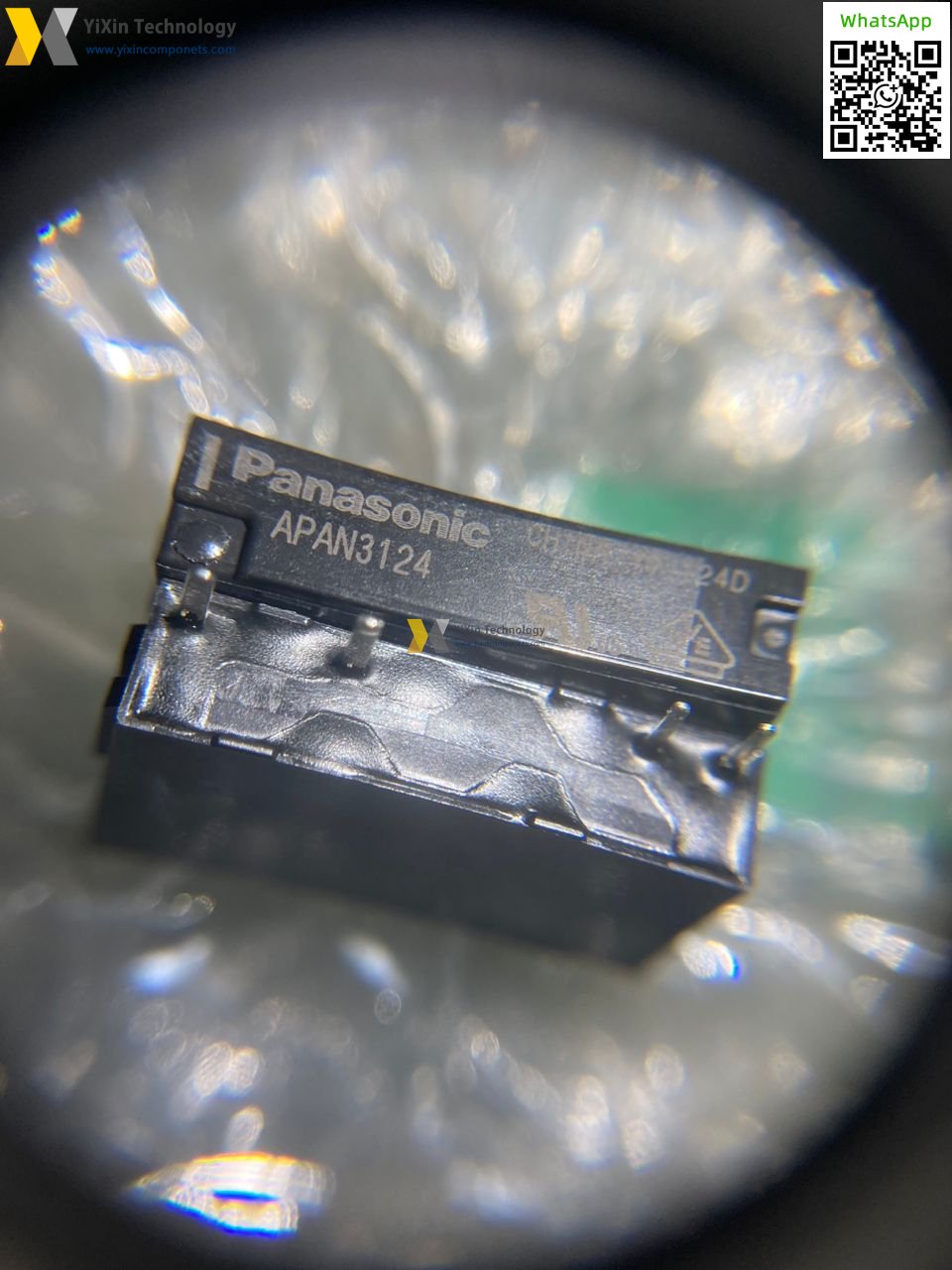

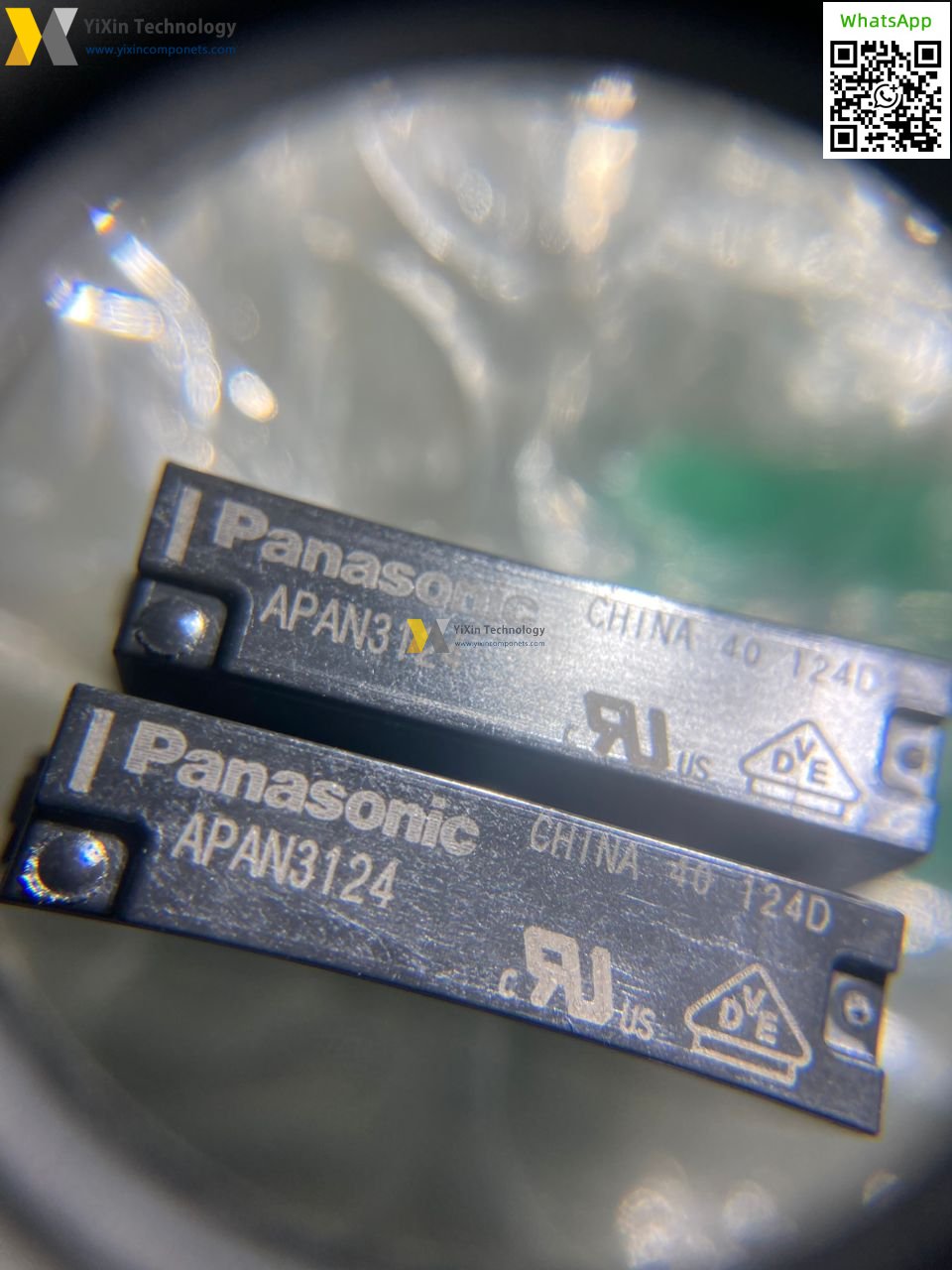

APAN3124
| Part Number | APAN3124 |
| Manufacturer | Panasonic Electric Works |
| Category | Relays |
| Description | RELAY GEN PURPOSE SPST 5A 24V |
APAN3124 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | APAN3124 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Panasonic Electric Works |
| Product Line | Power |
| Subcategory | Power Relays, Over 2 Amps |
| Series | PA-N |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5A |
| Switching Voltage | 250VAC, 110VDC - Max |
| Coil Current | 4.6mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10ms |
| Release Time | 5ms |
| Operating Temperature | -40°C ~ 90°C |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Relay Type | General Purpose |
