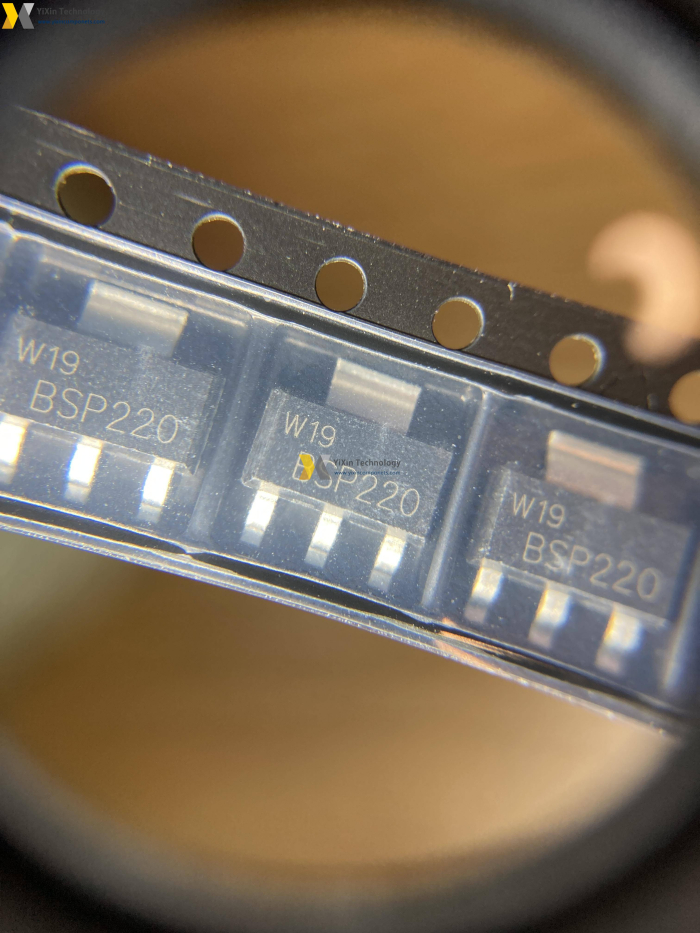

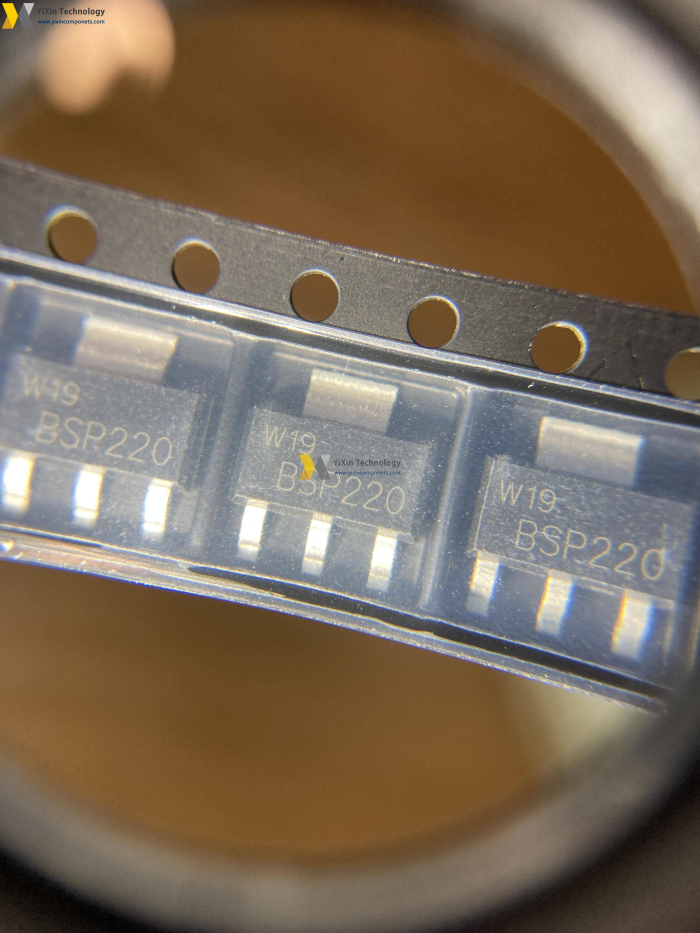

BSP220,115
| Part Number | BSP220,115 |
| Manufacturer | Nexperia |
| Category | Transistors |
| Description | MOSFET P-CH 200V 0.225A SOT223 |
BSP220,115 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | BSP220,115 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Nexperia |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | - |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200V |
| Current - Continuous Drain (Id) @ 25°C | 225mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 12Ohm @ 200mA, 10V |
| Vgs(th) (Max) @ Id | 2.8V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 90pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 1.5W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-73 |
| Package / Case | TO-261-4, TO-261AA |
Quick Inquiry
| In Stock | 28883 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
