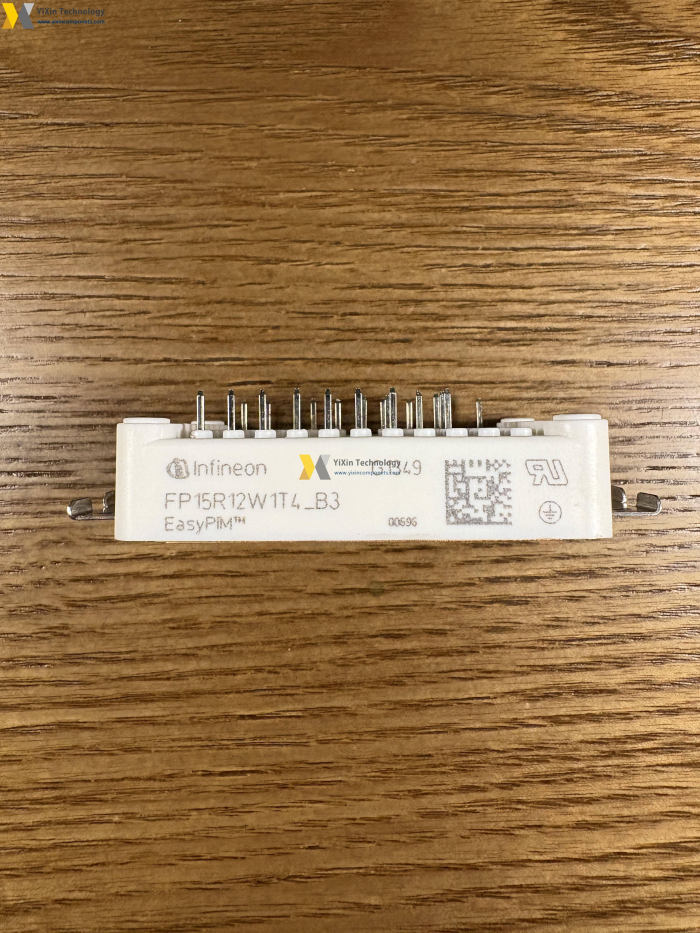

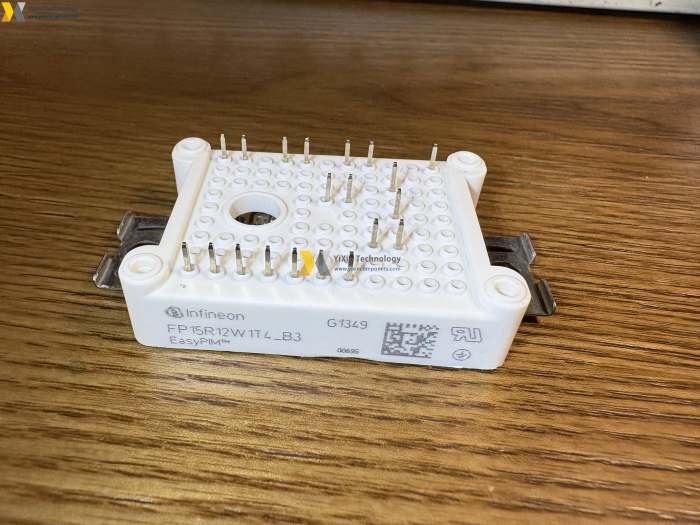

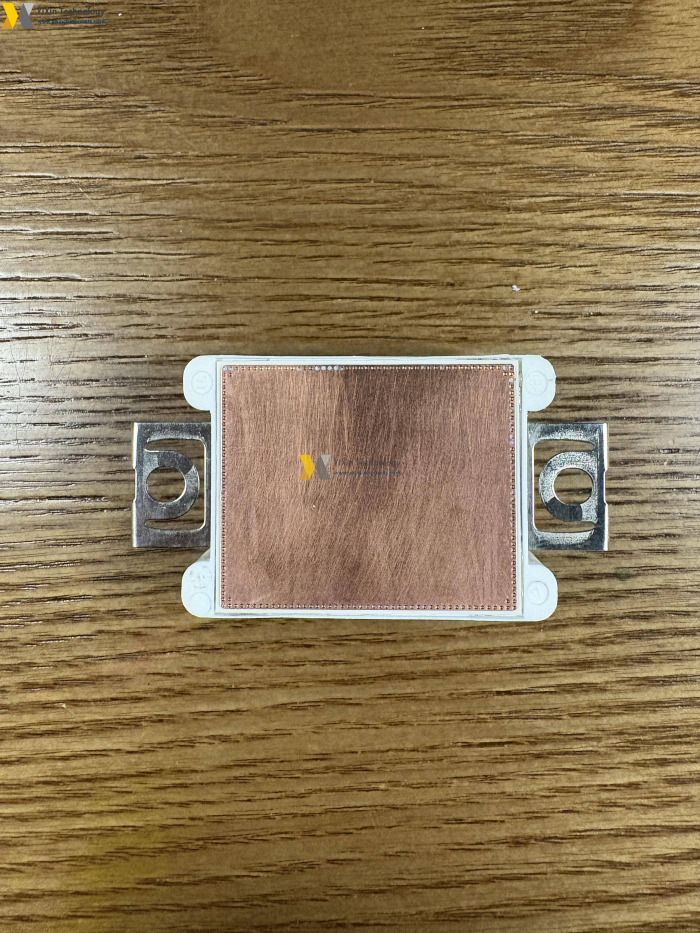

FP15R12W1T4B3BOMA1
| Part Number | FP15R12W1T4B3BOMA1 |
| Manufacturer | Infineon Technologies |
| Category | Transistors |
| Description | IGBT MODULE VCES 600V 22A |
FP15R12W1T4B3BOMA1 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | FP15R12W1T4B3BOMA1 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Infineon Technologies |
| Product Line | Semiconductors |
| Subcategory | IGBTs - Modules |
| Series | - |
| IGBT Type | Trench Field Stop |
| Configuration | Three Phase Inverter |
| Voltage - Collector Emitter Breakdown (Max) | 1200V |
| Current - Collector (Ic) (Max) | 28A |
| Power - Max | 130W |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 15A |
| Current - Collector Cutoff (Max) | 1mA |
| Input Capacitance (Cies) @ Vce | 890pF @ 25V |
| Input | Standard |
| NTC Thermistor | Yes |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | Module |
