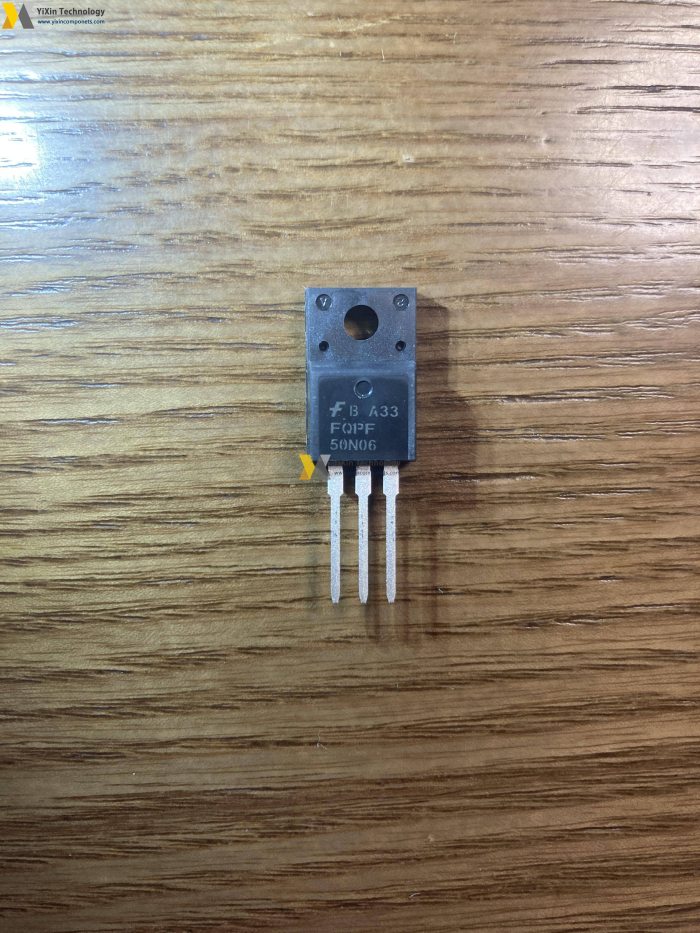

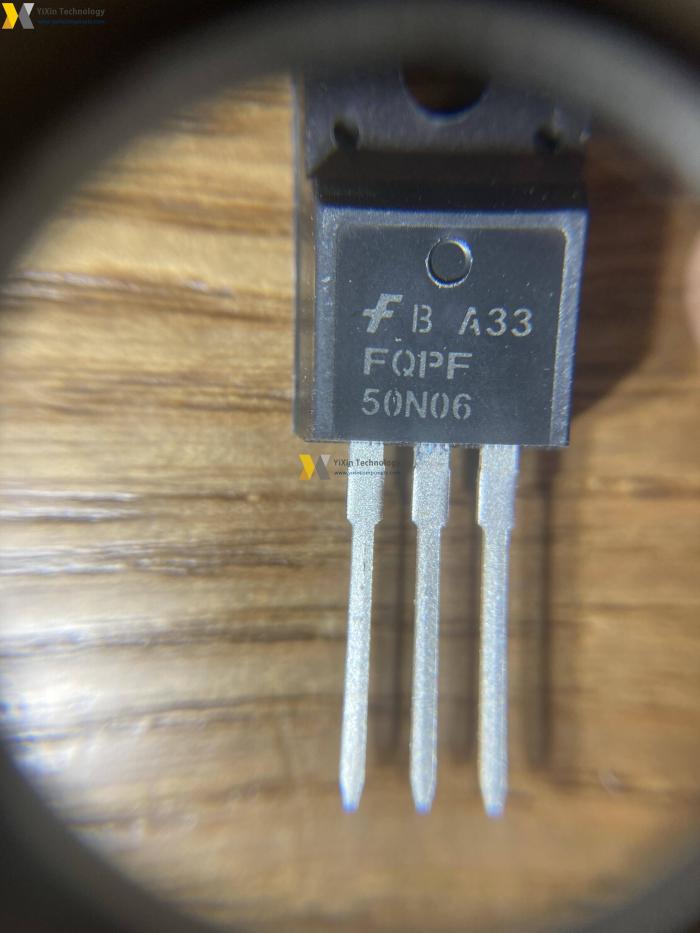

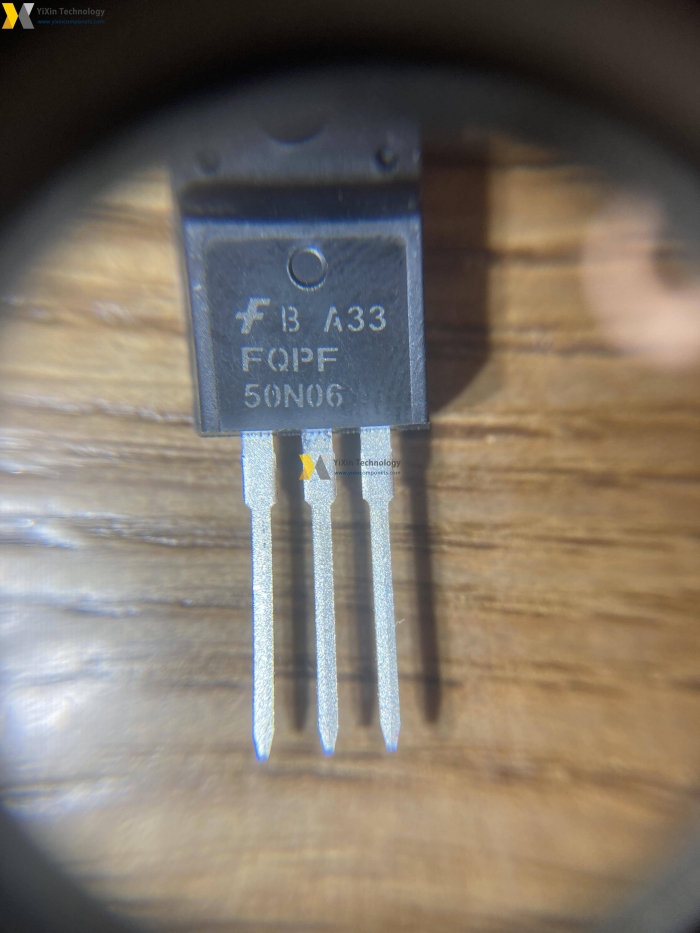

FQPF50N06
| Part Number | FQPF50N06 |
| Manufacturer | ON Semiconductor |
| Category | Transistors |
| Description | MOSFET N-CH 60V 31A TO-220F |
FQPF50N06 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | FQPF50N06 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | QFET® |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 31A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 22mOhm @ 15.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 41nC @ 10V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1540pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 47W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220F |
| Package / Case | TO-220-3 Full Pack |
