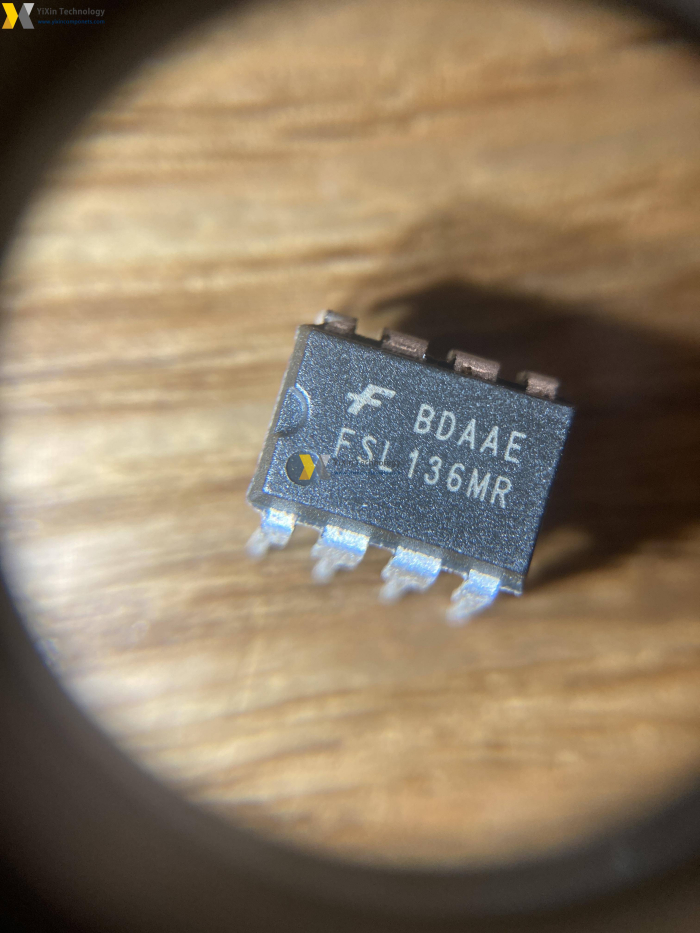

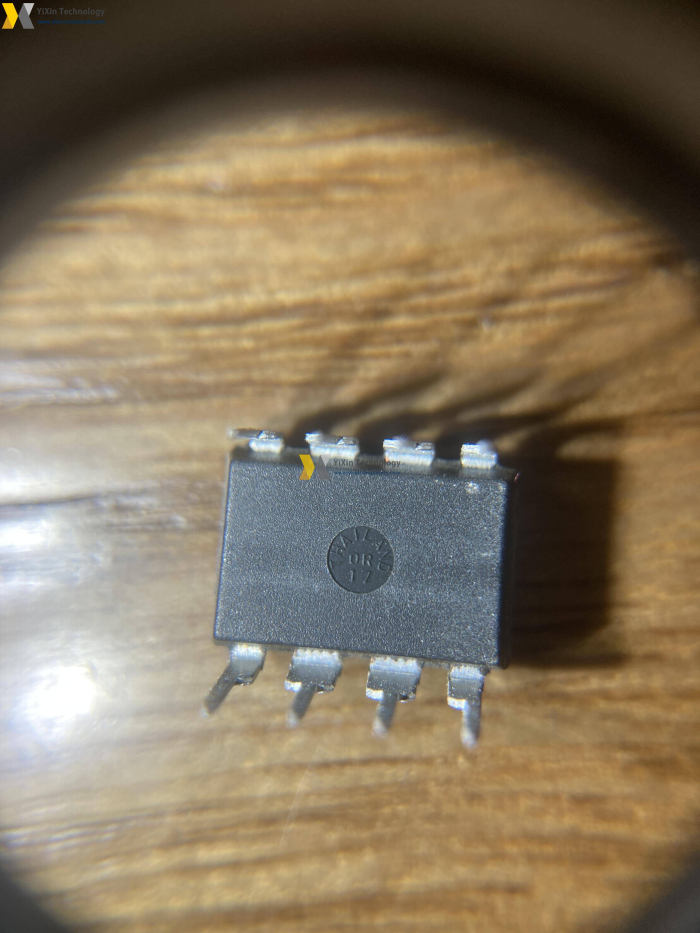

FSL136MR
| Part Number | FSL136MR |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC PWM/SENSEFET SMPS 3A 8-DIP |
FSL136MR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | FSL136MR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | FPS™ |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 650V |
| Topology | Flyback |
| Voltage - Start Up | 12V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 26V |
| Duty Cycle | 77% |
| Frequency - Switching | 67kHz |
| Power (Watts) | 26W |
| Fault Protection | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 105°C (TA) |

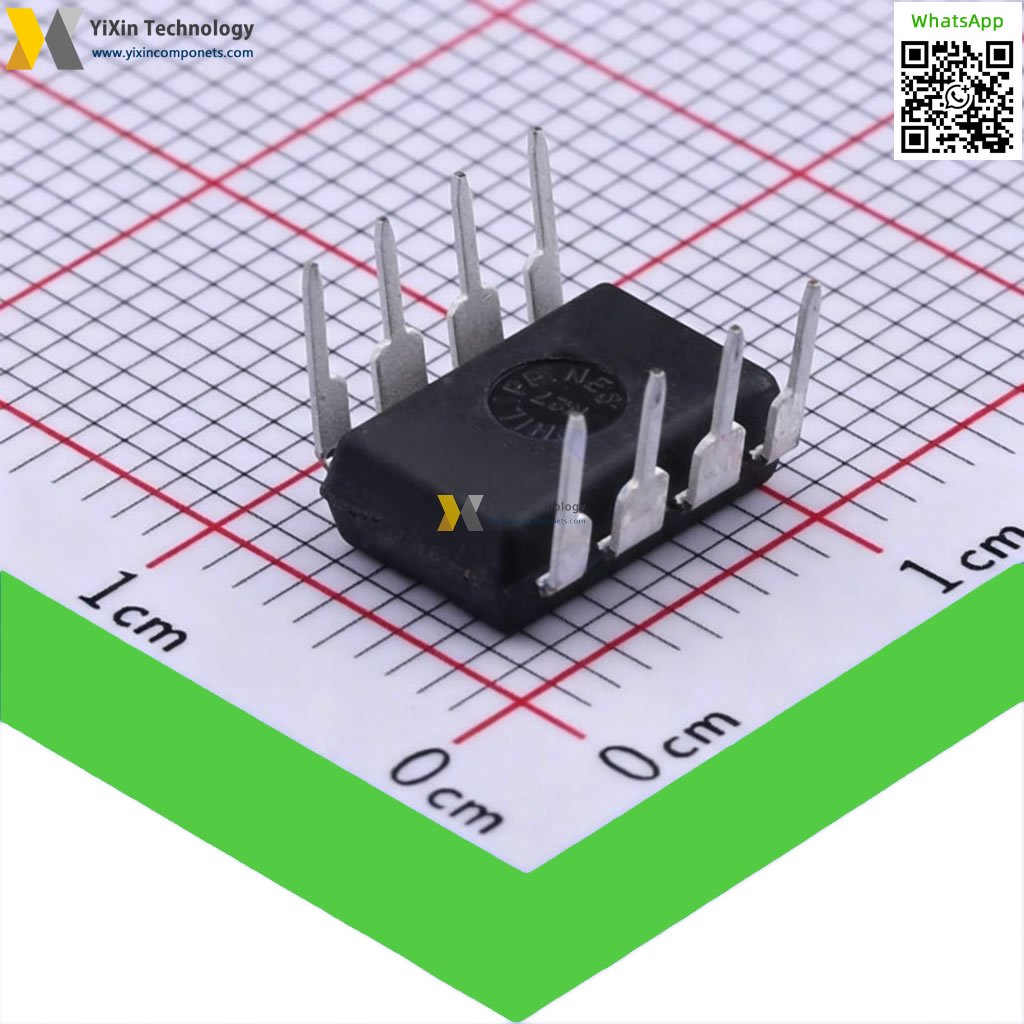

| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Mounting Type | Through Hole |
Quick Inquiry
| In Stock | 3496 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
