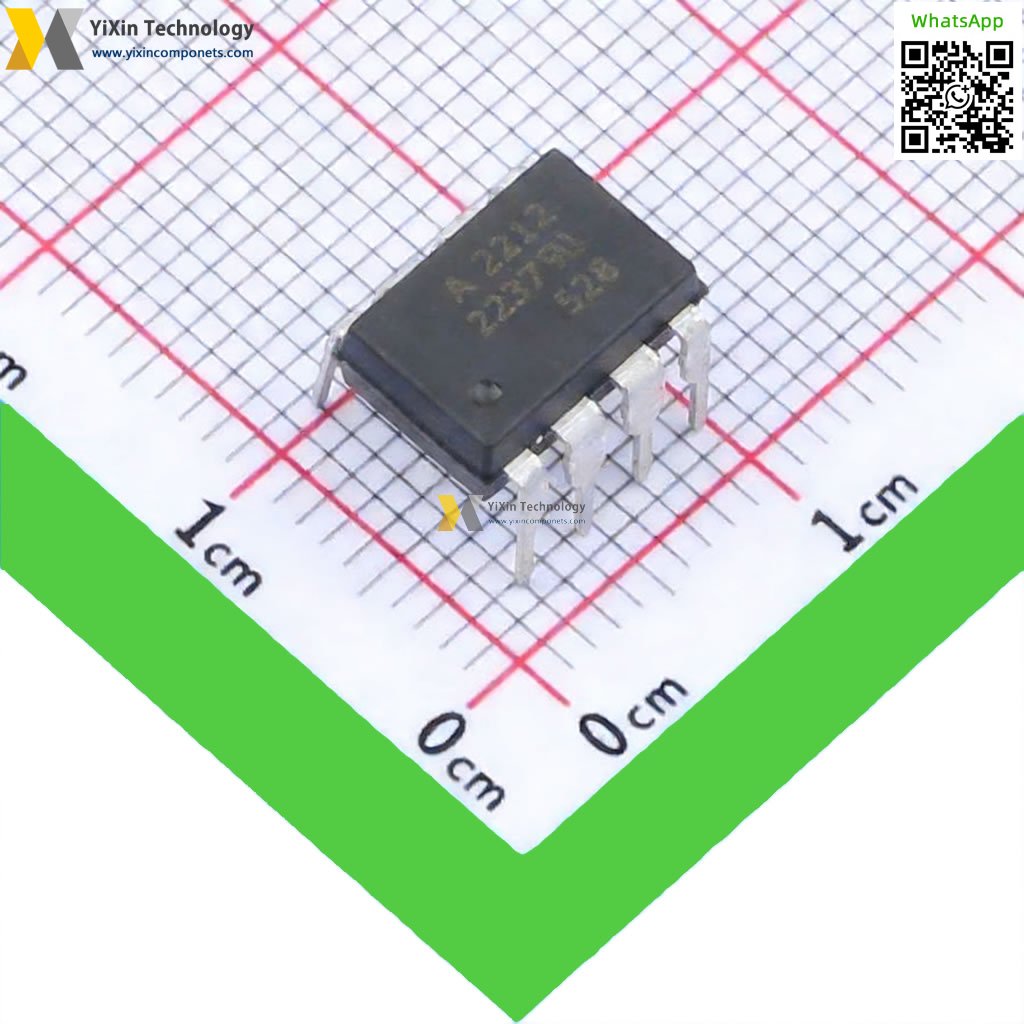

HCPL-2212
| Part Number | HCPL-2212 |
| Manufacturer | Broadcom |
| Category | Isolators |
| Description | OPTOISO 3.75KV PUSH PULL 8DIP |
HCPL-2212 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | HCPL-2212 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Broadcom |
| Product Line | Semiconductors |
| Subcategory | Optoisolators - Logic Output |
| Series | - |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 5kV/µs, 10kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25mA |
| Data Rate | 5MBd |
| Propagation Delay tpLH / tpHL (Max) | 300ns, 300ns |
| Rise / Fall Time (Typ) | 30ns, 7ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 10mA |
| Voltage - Supply | 4.5V ~ 20V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
