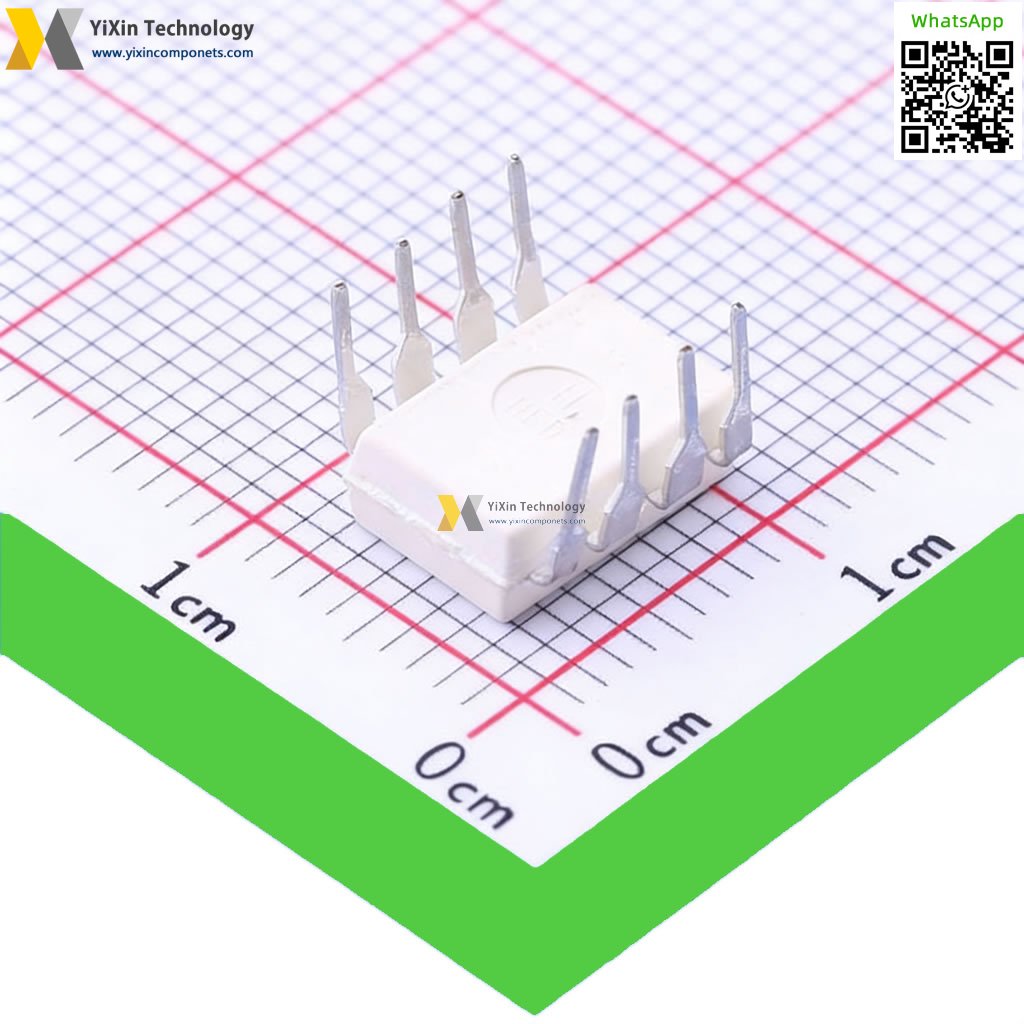

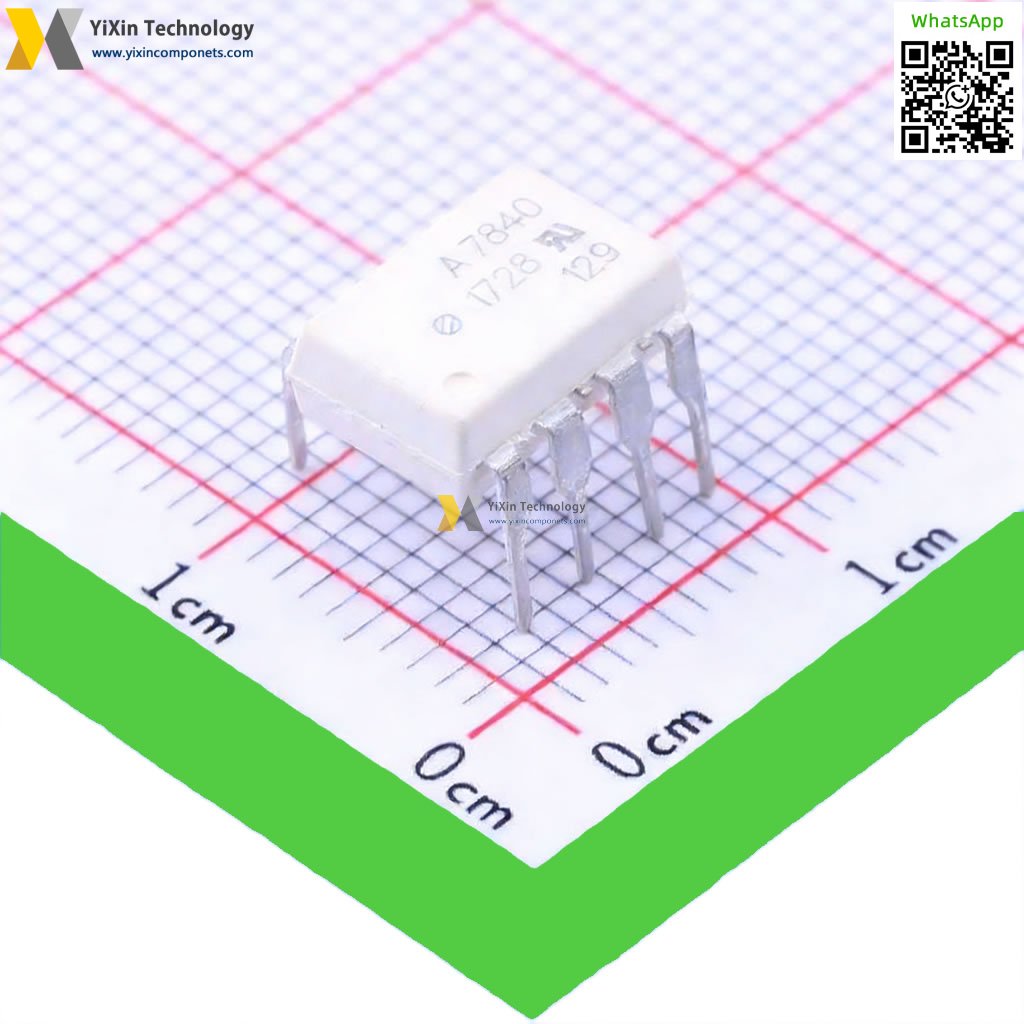

HCPL-7840-000E
| Part Number | HCPL-7840-000E |
| Manufacturer | Broadcom |
| Category | Linear ICs |
| Description | IC OPAMP ISOLATION 1 CIRC 8DIP |
HCPL-7840-000E Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | HCPL-7840-000E PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Broadcom |
| Product Line | Semiconductors |
| Subcategory | Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Series | - |
| Amplifier Type | Isolation |
| Number of Circuits | 1 |
| Output Type | Differential |
| Slew Rate | - |
| Gain Bandwidth Product | - |
| -3db Bandwidth | 100kHz |
| Current - Input Bias | 500nA |
| Voltage - Input Offset | 300µV |
| Current - Supply | 10.86mA |
| Current - Output / Channel | 15.5mA |
| Voltage - Supply, Single/Dual (±) | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
