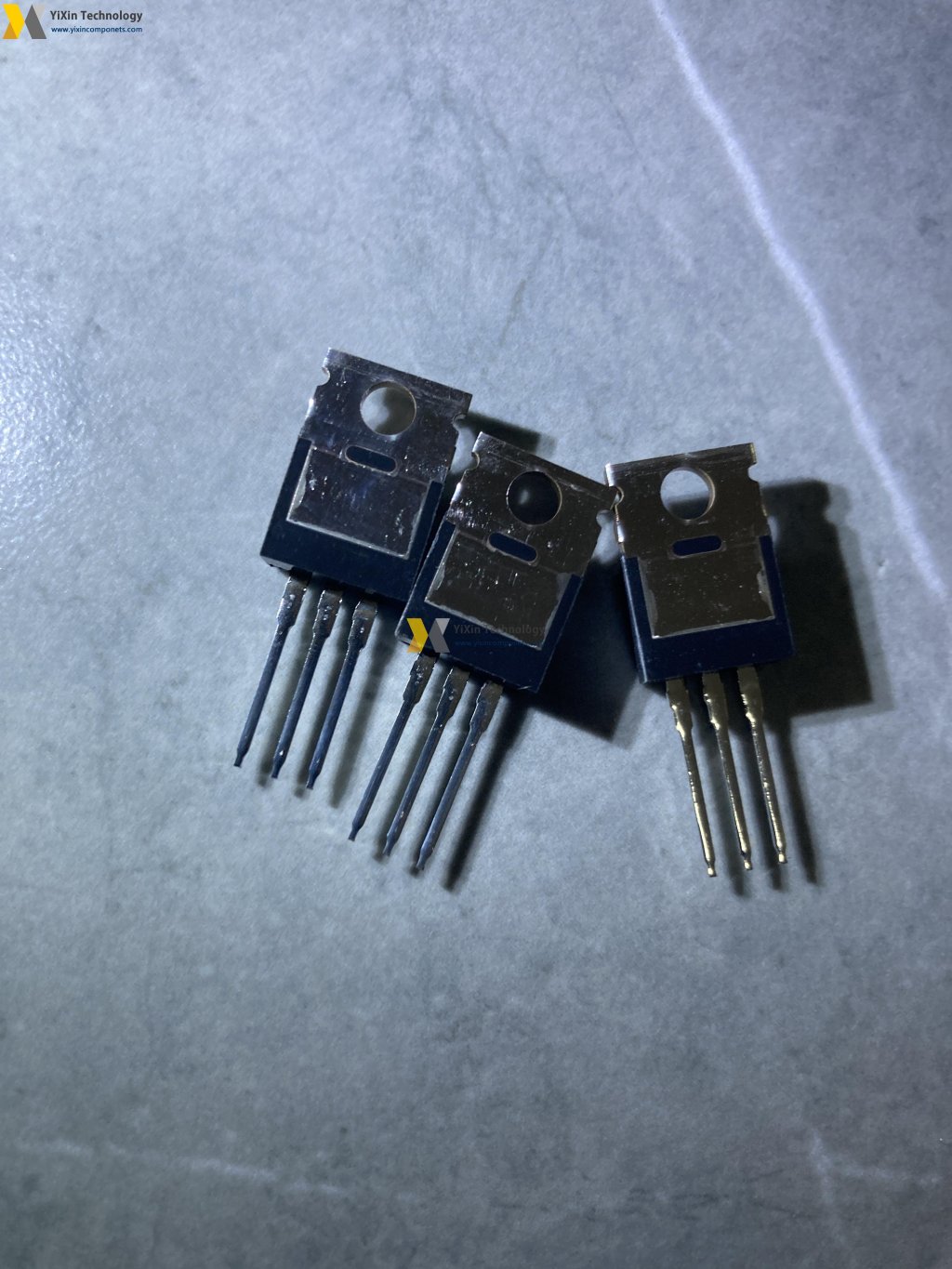

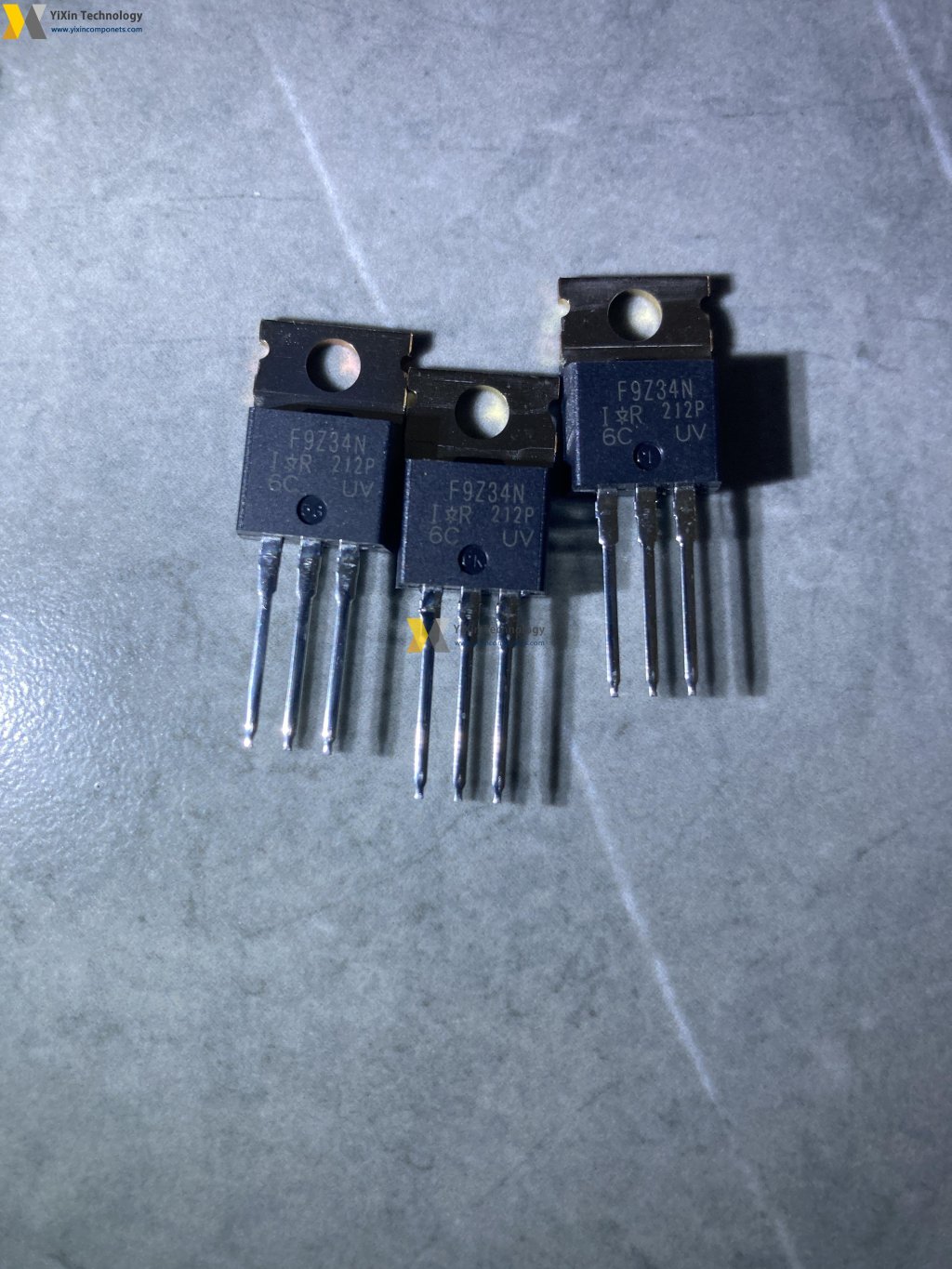

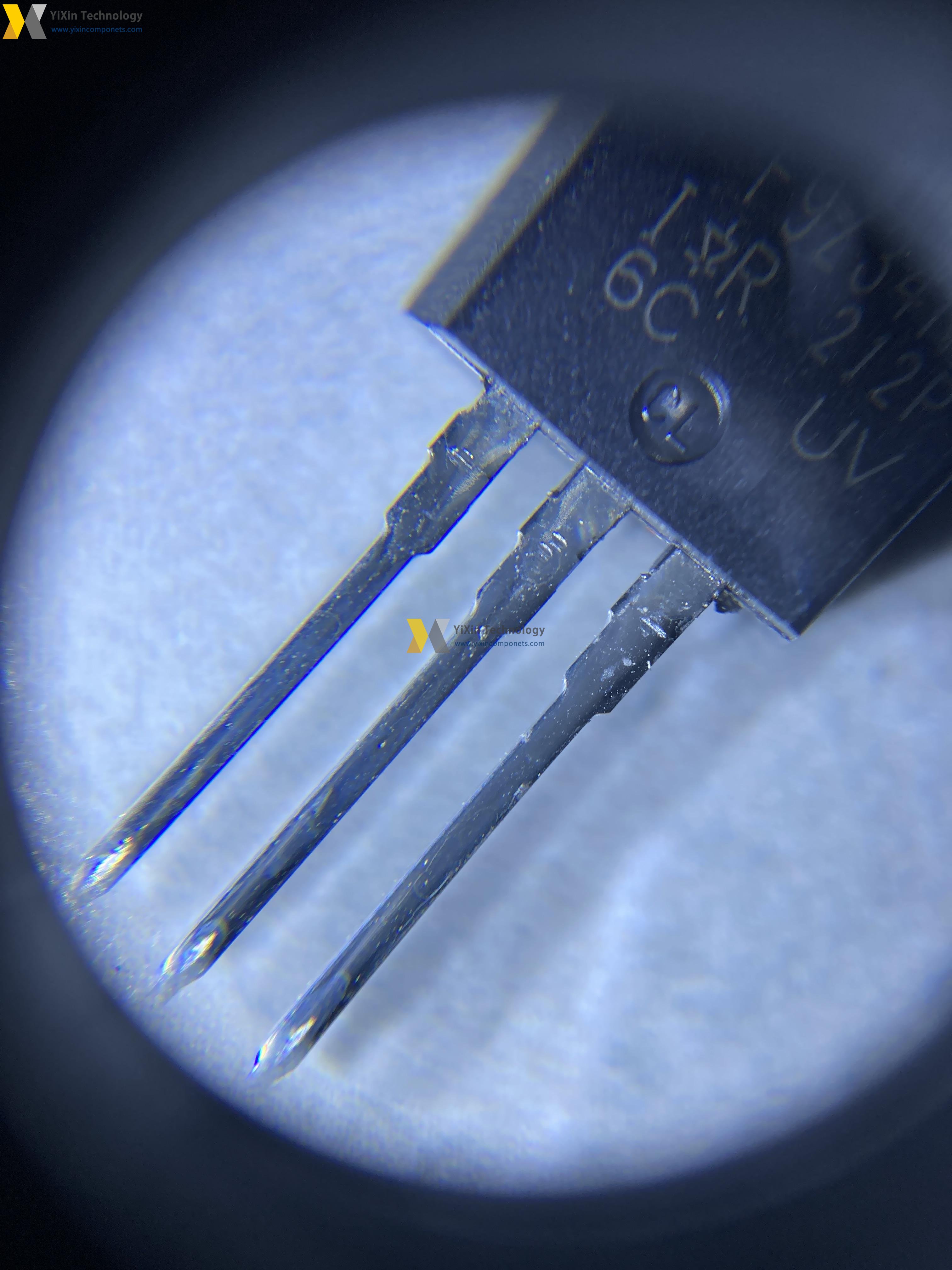

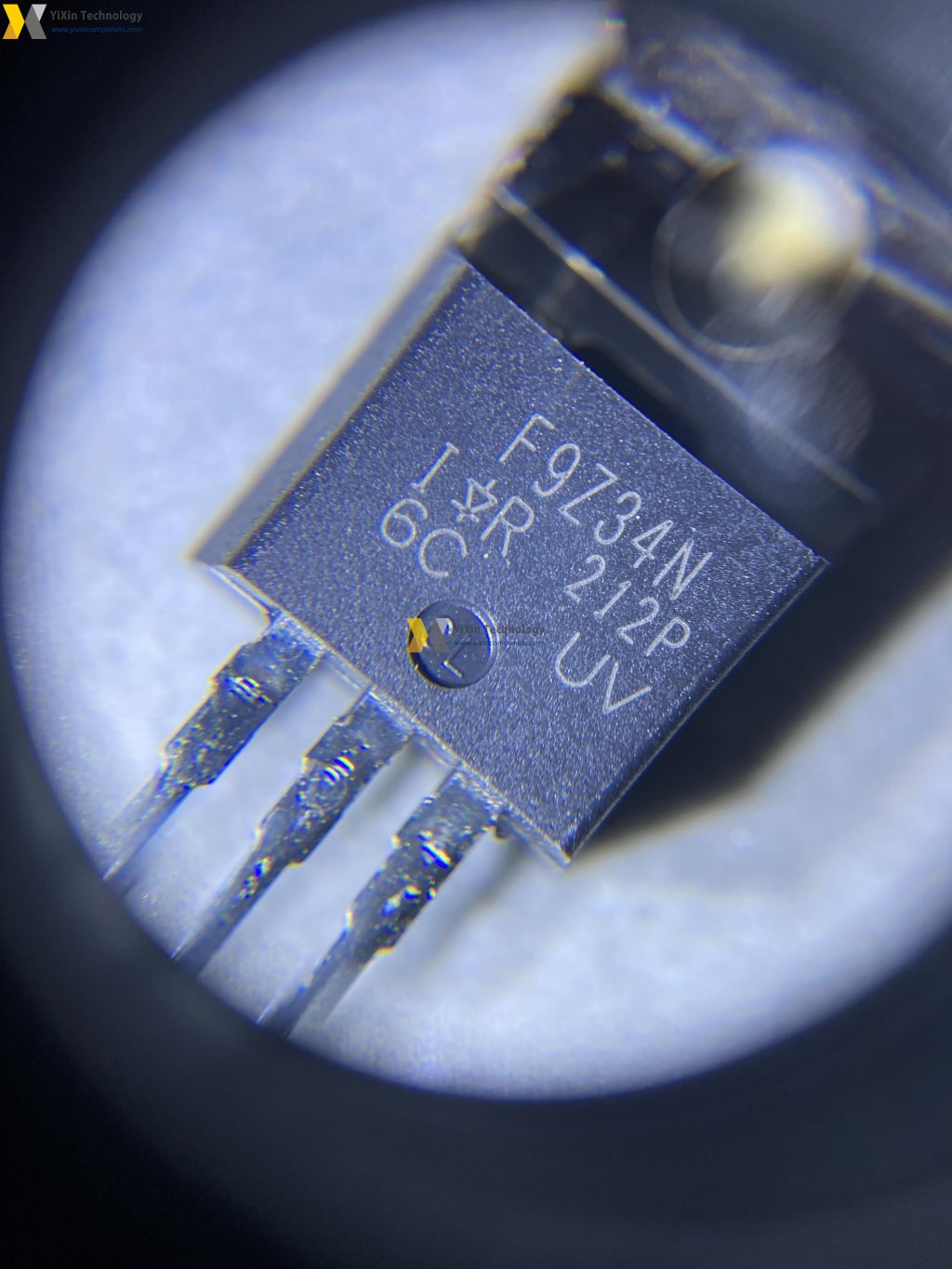

IRF9Z34NPBF
| Part Number | IRF9Z34NPBF |
| Manufacturer | Infineon Technologies |
| Category | Transistors |
| Description | MOSFET P-CH 55V 19A TO-220AB |
IRF9Z34NPBF Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | IRF9Z34NPBF PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Infineon Technologies |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | HEXFET® |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55V |
| Current - Continuous Drain (Id) @ 25°C | 19A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 35nC @ 10V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 620pF @ 25V |
| FET Feature | - |
| Power Dissipation (Max) | 68W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
Quick Inquiry
| In Stock | 18756 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
Please fill out the form below. We will contact you as soon as possible.
Add to cart
You can first add the current product to the shopping cart and then make a one-time inquiry.
