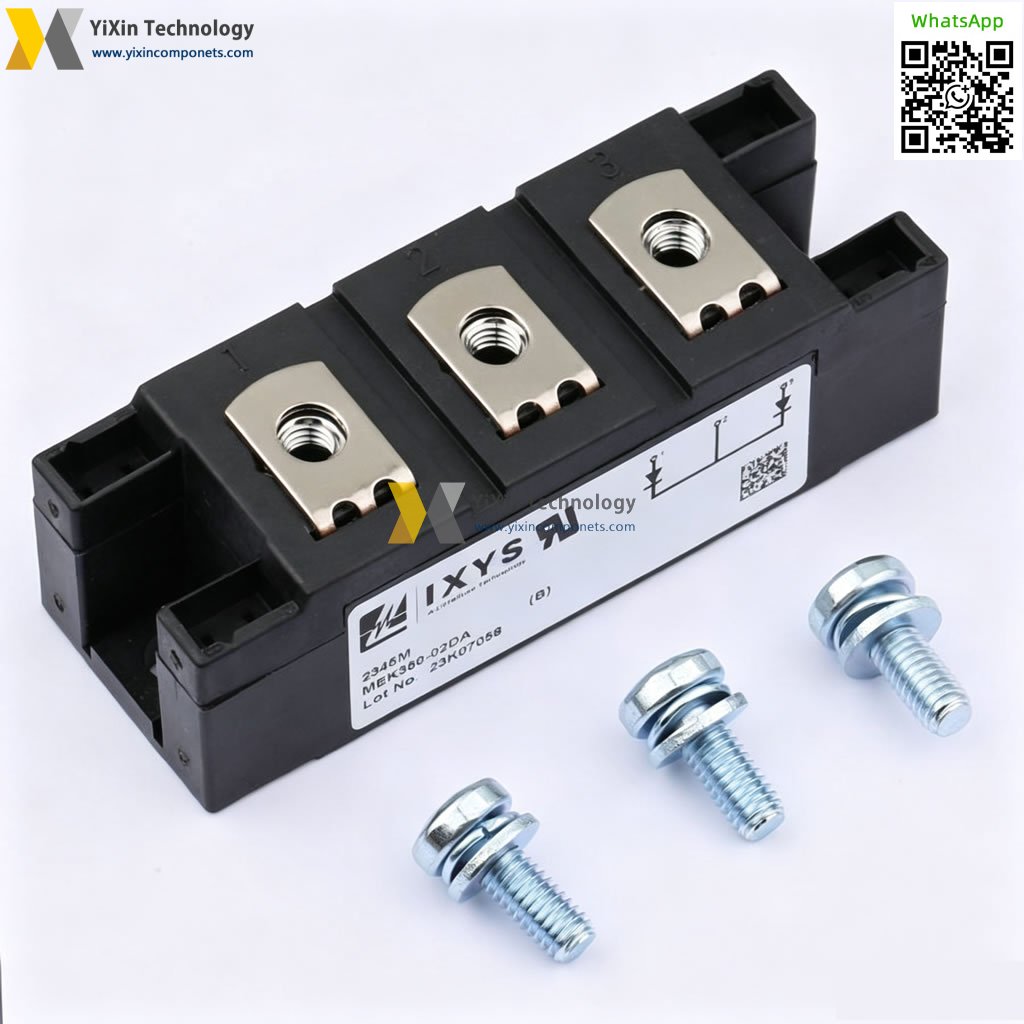

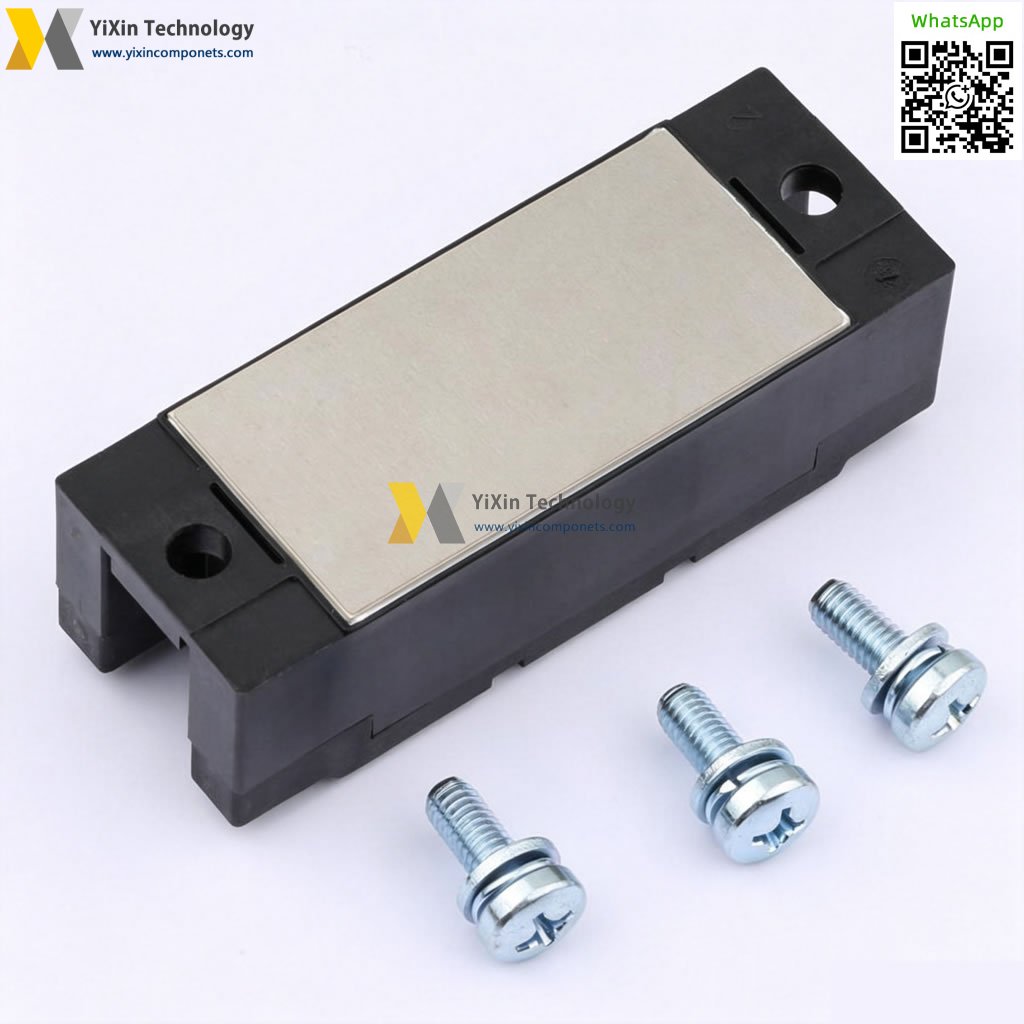

MEK350-02DA
| Part Number | MEK350-02DA |
| Manufacturer | IXYS |
| Category | Diodes & Rectifiers |
| Description | DIODE MODULE 200V 356A Y4-M6 |
MEK350-02DA Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | MEK350-02DA PCB Footprint and Symbol |
| Brand | IXYS |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Arrays |
| Series | - |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) (per Diode) | 356A |
| Voltage - Forward (Vf) (Max) @ If | 1.07V @ 260A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 200ns |
| Current - Reverse Leakage @ Vr | 3mA @ 200V |
| Operating Temperature - Junction | - |
| Mounting Type | Chassis Mount |
| Package / Case | Y4-M6 |
| Supplier Device Package | Y4-M6 |
Quick Inquiry
| In Stock | 551 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
