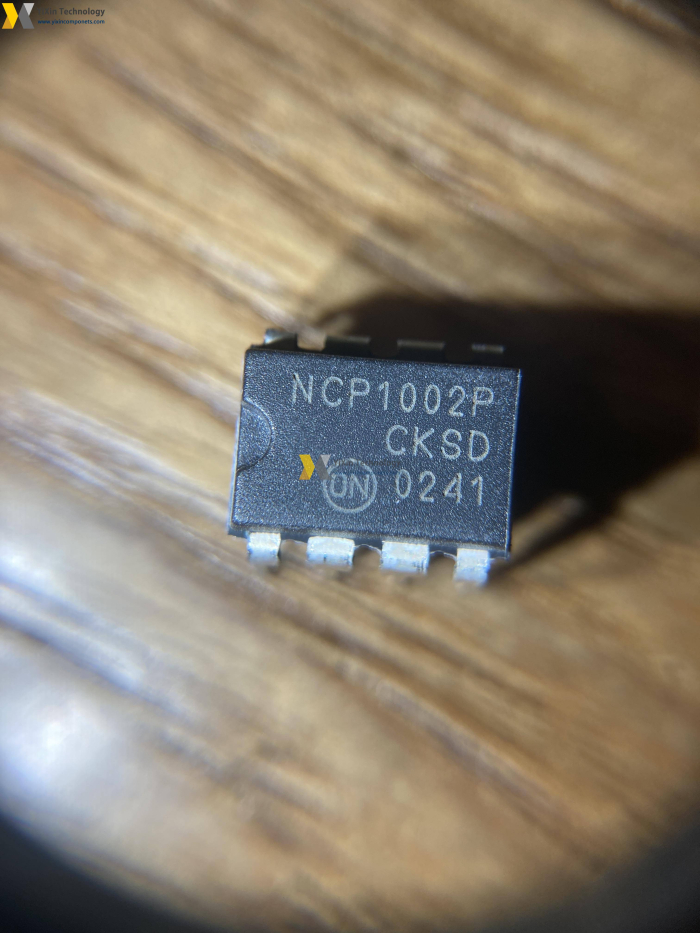

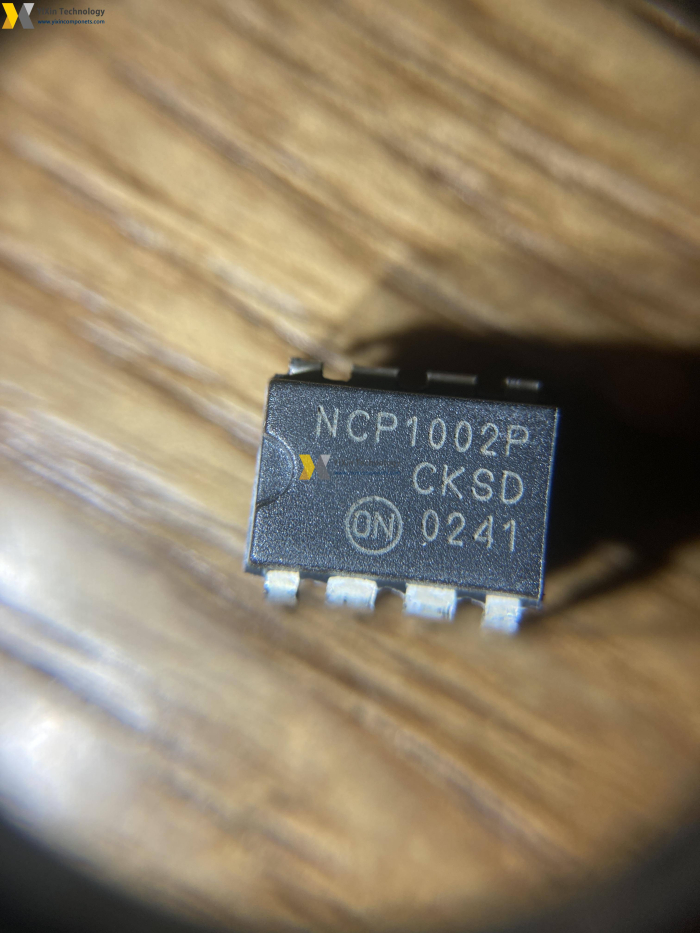

NCP1002P
| Part Number | NCP1002P |
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs |
| Description | IC OFFLINE SWIT PWM UVLO HV 8DIP |
NCP1002P Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | NCP1002P PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | - |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback, Forward |
| Voltage - Start Up | 8.5V |
| Voltage - Supply (Vcc/Vdd) | 7.5V ~ 10V |
| Duty Cycle | 72% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| Mounting Type | Through Hole |
Quick Inquiry
| In Stock | 108 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
