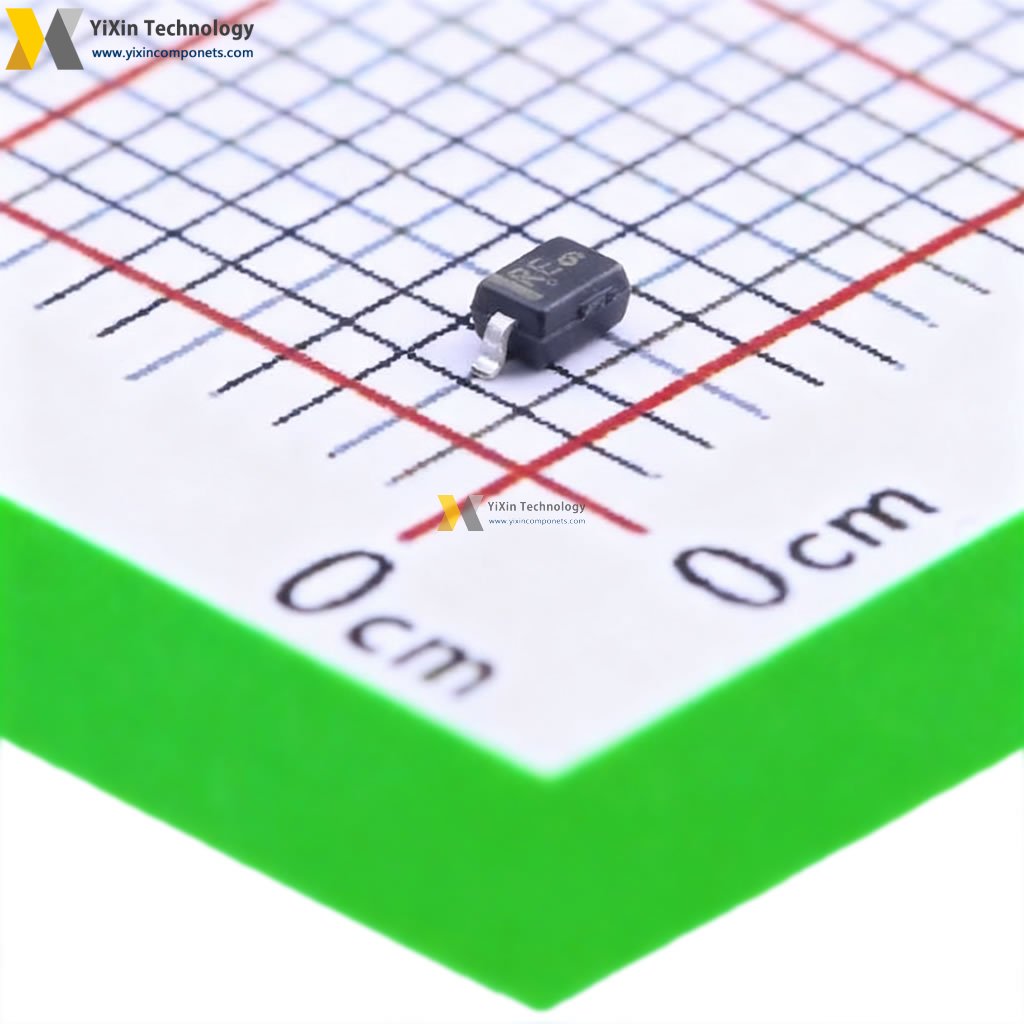

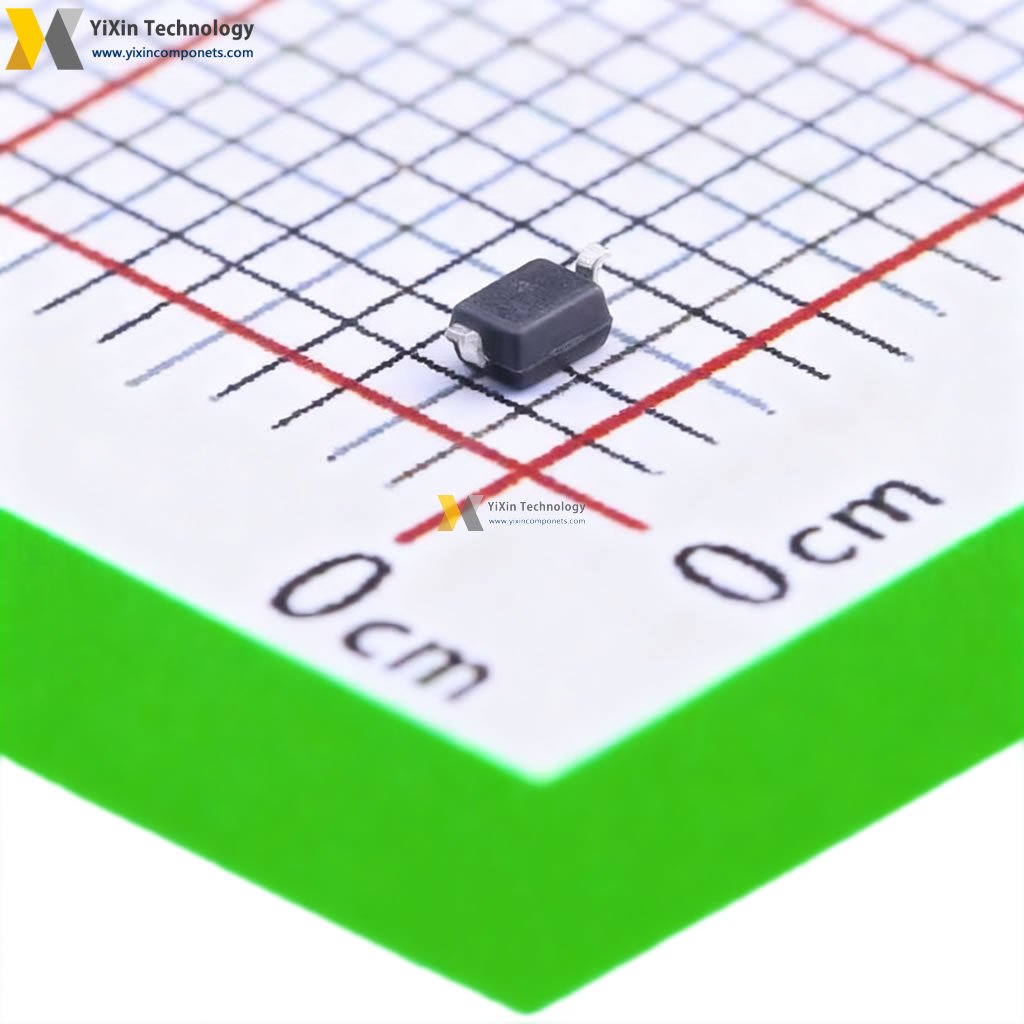

NSR1020MW2T1G
| Part Number | NSR1020MW2T1G |
| Manufacturer | ON Semiconductor |
| Category | Diodes & Rectifiers |
| Description | DIODE SCHOTTKY 20V 1A SOD323 |
NSR1020MW2T1G Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | NSR1020MW2T1G PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | ON Semiconductor |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | - |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20V |
| Current - Average Rectified (Io) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 540mV @ 1A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 40µA @ 15V |
| Capacitance @ Vr, F | 29pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | 125°C (Max) |
