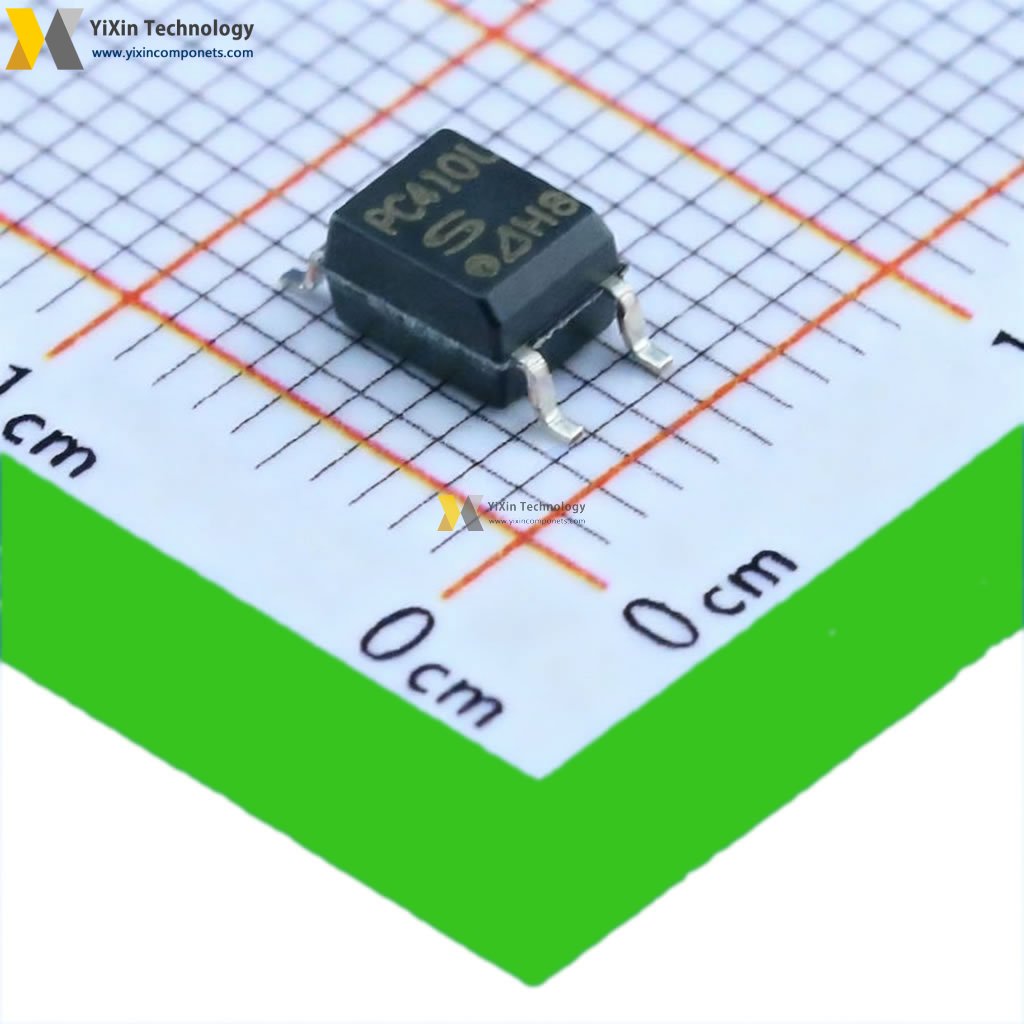

PC410L0NIP0F
| Part Number | PC410L0NIP0F |
| Manufacturer | Sharp Microelectronics |
| Category | Isolators |
| Description | OPTOISO 3.75KV OPEN COLL 5SOP |
PC410L0NIP0F Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | PC410L0NIP0F PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Sharp Microelectronics |
| Product Line | Semiconductors |
| Subcategory | Optoisolators - Logic Output |
| Series | OPIC™ |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Open Collector |
| Current - Output / Channel | 50mA |
| Data Rate | 10Mbps |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 20ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.173", 4.40mm Width), 5 Leads |
| Supplier Device Package | 5-SOP |
