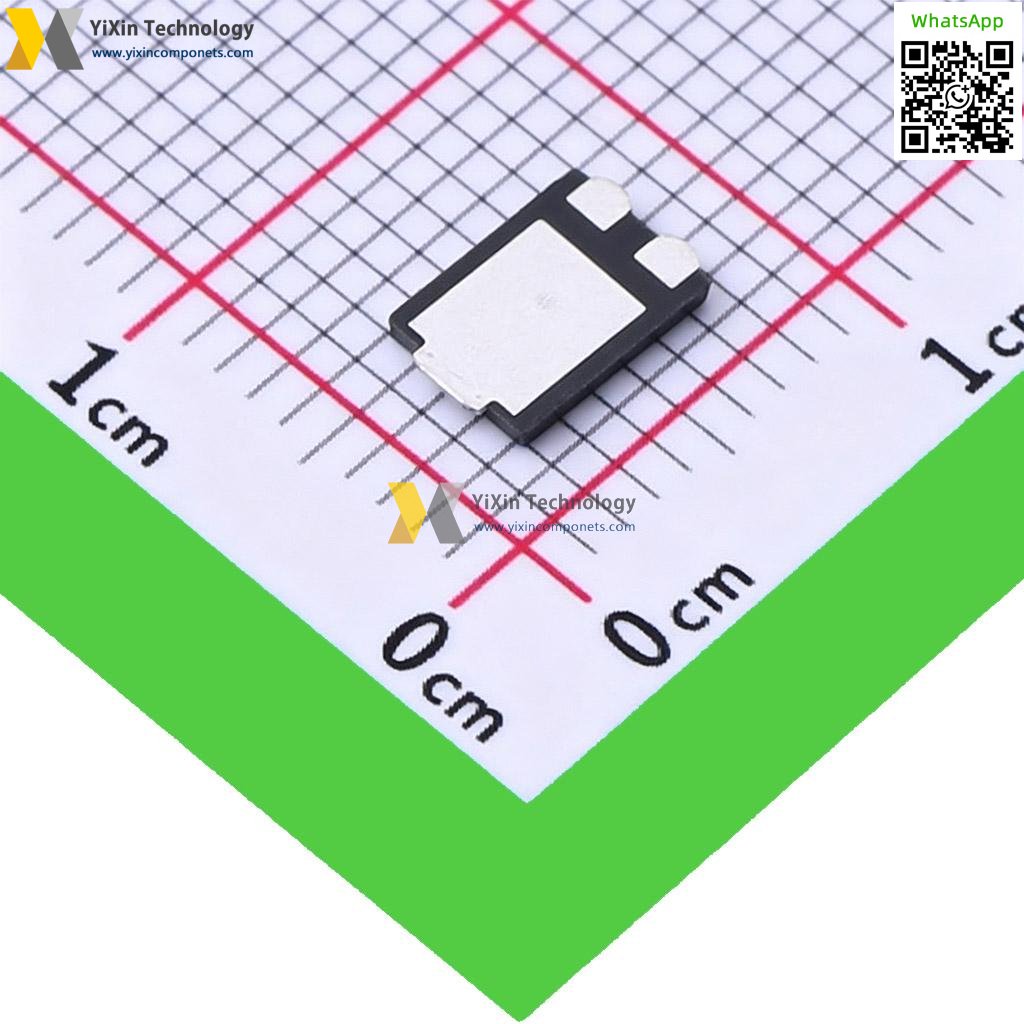

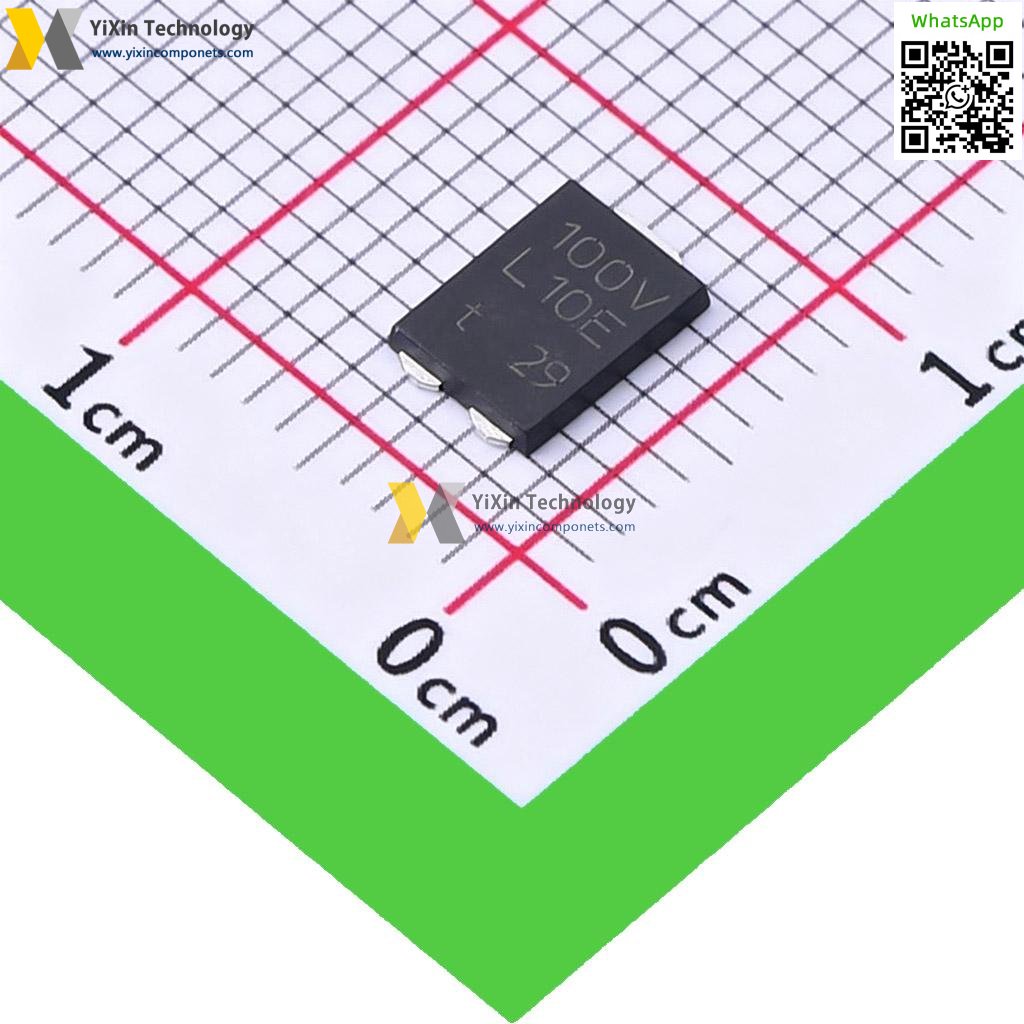

PMEG100V100ELPDAZ
| Part Number | PMEG100V100ELPDAZ |
| Manufacturer | Nexperia USA Inc. |
| Category | Diodes & Rectifiers |
| Description | DIODE SCHOTTKY 100V 10A CFP15 |
PMEG100V100ELPDAZ Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | PMEG100V100ELPDAZ PCB Footprint and Symbol |
| Brand | Nexperia |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | Automotive, AEC-Q101 |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 850mV @ 10A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 14ns |
| Current - Reverse Leakage @ Vr | 1µA @ 100V |
| Capacitance @ Vr, F | 135pF @ 10V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | CFP15 |
| Operating Temperature - Junction | 175°C (Max) |
