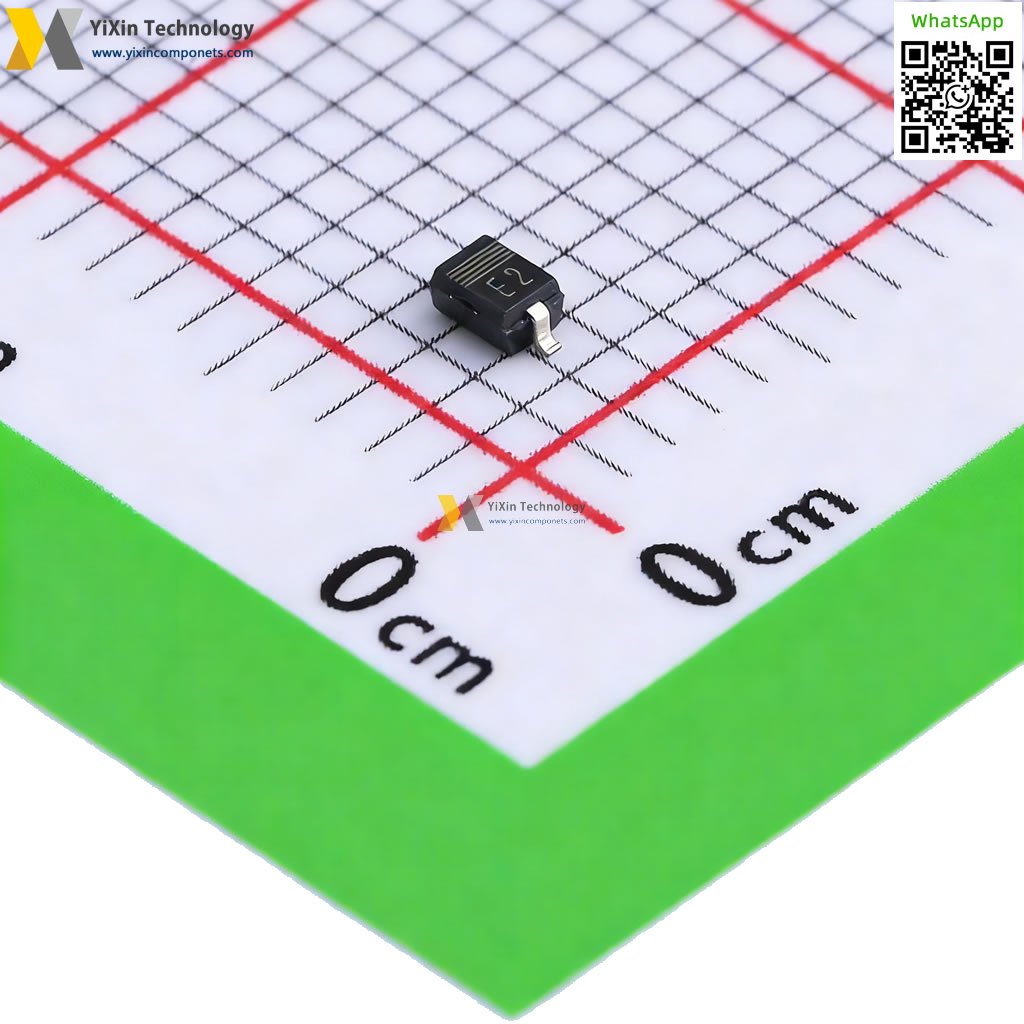

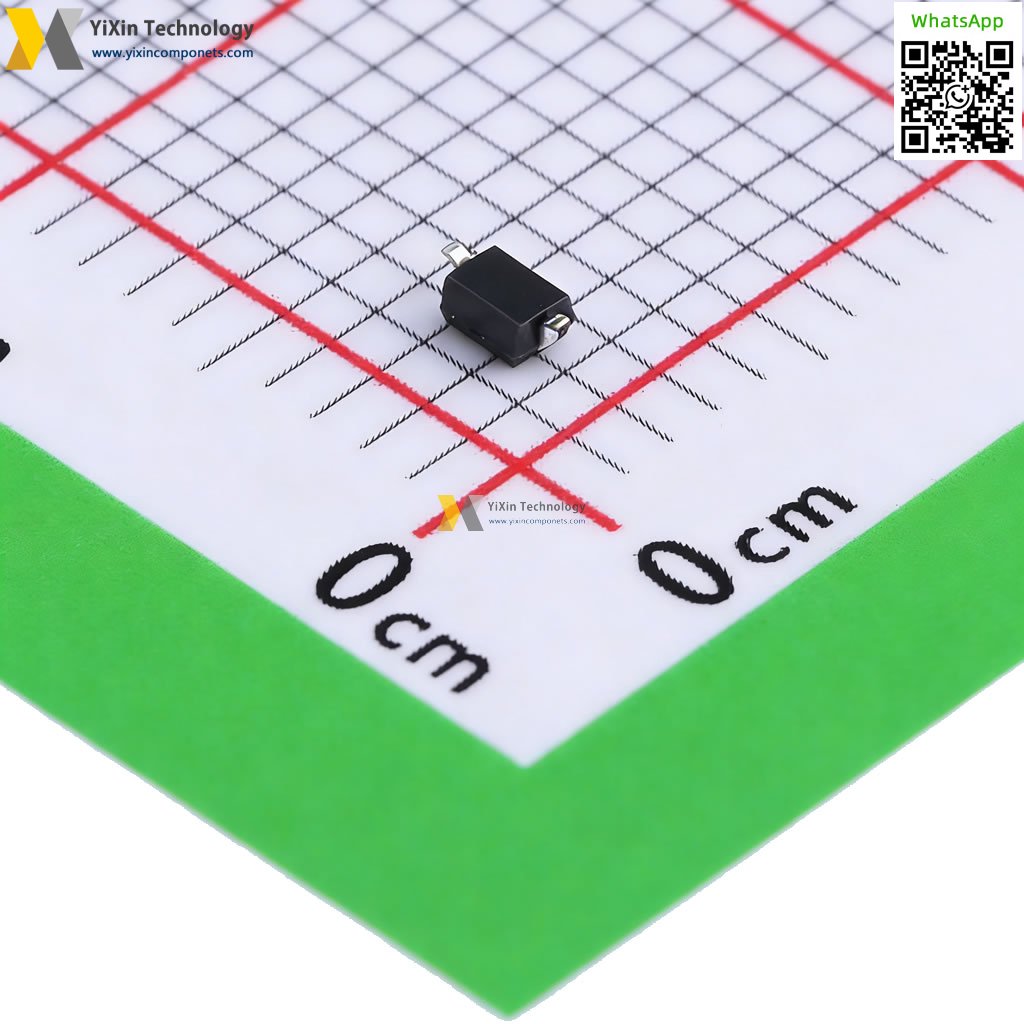

PMEG1020EA,115
| Part Number | PMEG1020EA,115 |
| Manufacturer | Nexperia USA Inc. |
| Category | Diodes & Rectifiers |
| Description | DIODE SCHOTTKY 10V 2A SOD323 |
PMEG1020EA,115 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | PMEG1020EA,115 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Nexperia |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | - |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 10V |
| Current - Average Rectified (Io) | 2A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 460mV @ 2A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 3mA @ 10V |
| Capacitance @ Vr, F | 45pF @ 5V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | 150°C (Max) |
