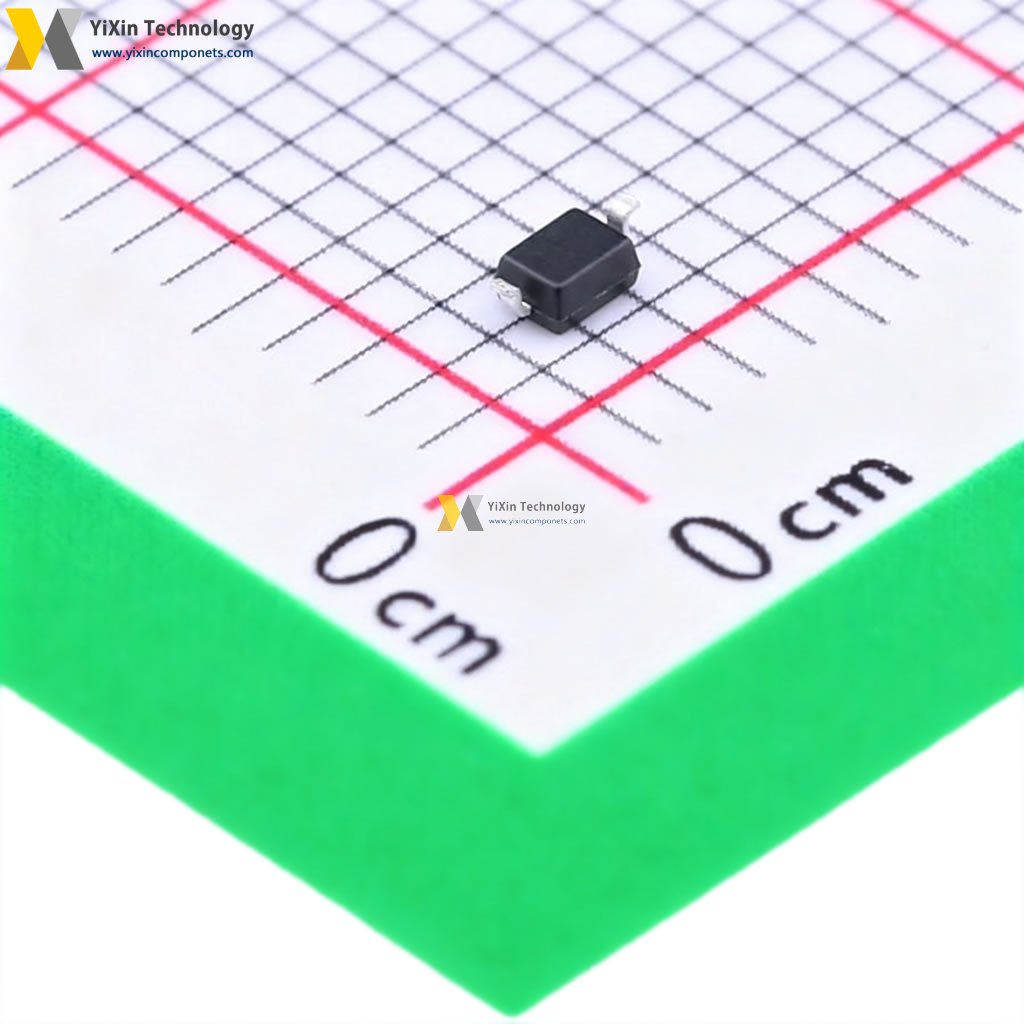

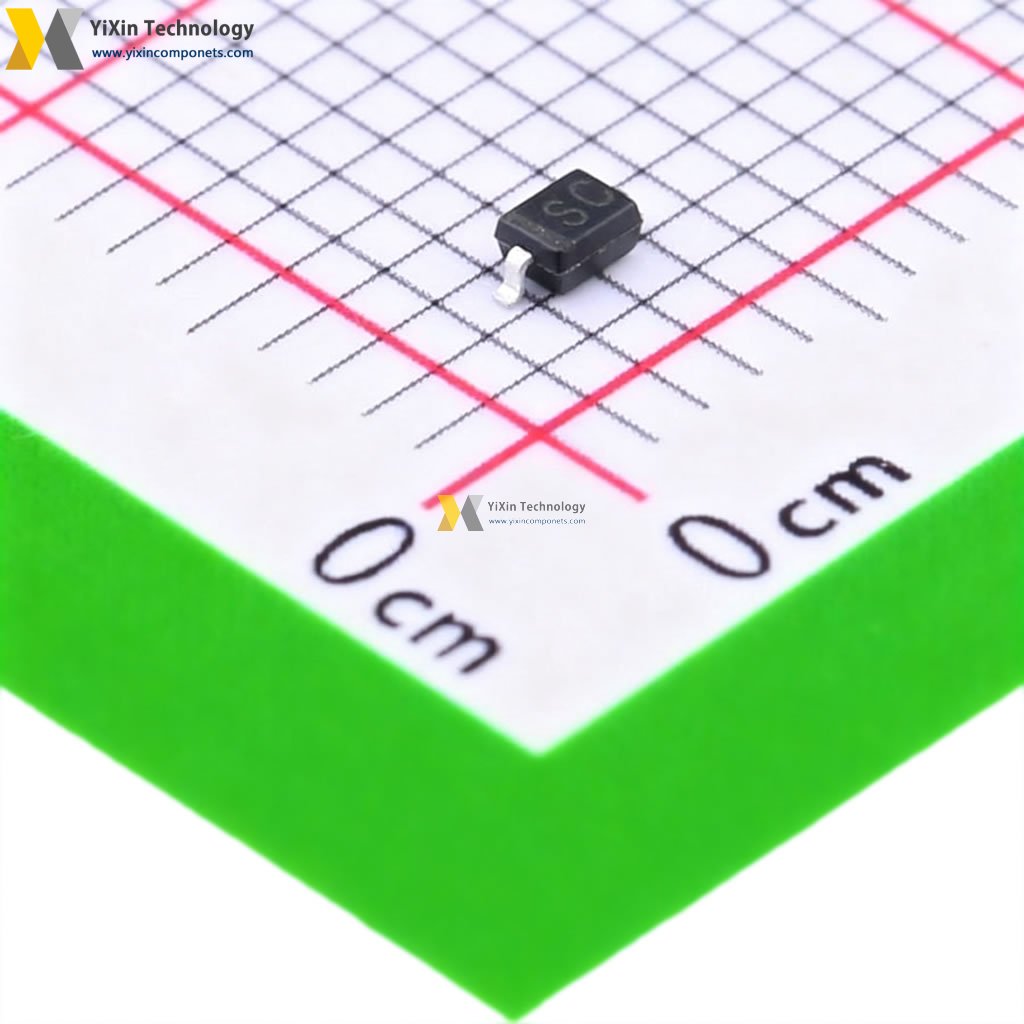

SD101CWS-HE3-08
| Part Number | SD101CWS-HE3-08 |
| Manufacturer | Vishay Semiconductor Diodes Division |
| Category | Diodes & Rectifiers |
| Description | DIODE SCHOTTKY 150MW 40V SOD323 |
SD101CWS-HE3-08 Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | SD101CWS-HE3-08 PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Vishay Semiconductor Diodes Division |
| Product Line | Semiconductors |
| Subcategory | Rectifiers - Single |
| Series | Automotive, AEC-Q101 |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 30mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 15mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 1ns |
| Current - Reverse Leakage @ Vr | 200nA @ 30V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -55°C ~ 125°C |
