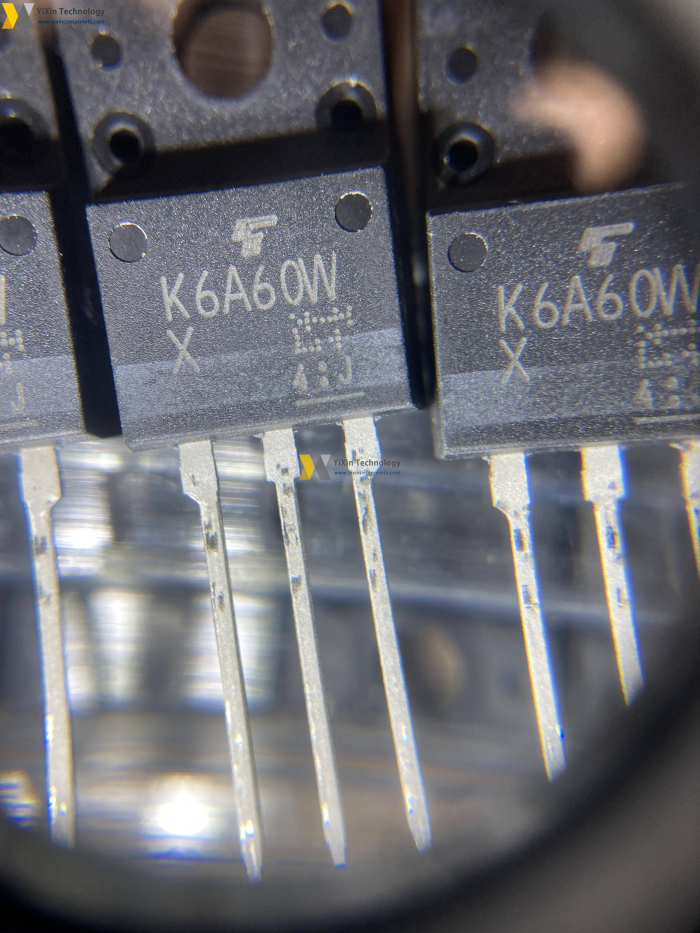

TK6A60W,S4VX
| Part Number | TK6A60W,S4VX |
| Manufacturer | Toshiba Semiconductor and Storage |
| Category | Transistors |
| Description | MOSFET N CH 600V 6.2A TO-220SIS |
TK6A60W,S4VX Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | TK6A60W,S4VX PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Toshiba Semiconductor and Storage |
| Product Line | Semiconductors |
| Subcategory | FETs, MOSFETs - Single |
| Series | DTMOSIV |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600V |
| Current - Continuous Drain (Id) @ 25°C | 6.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 750mOhm @ 3.1A, 10V |
| Vgs(th) (Max) @ Id | 3.7V @ 310µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 390pF @ 300V |
| FET Feature | Super Junction |
| Power Dissipation (Max) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220SIS |
| Package / Case | TO-220-3 Full Pack |
Quick Inquiry
| In Stock | 193 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
