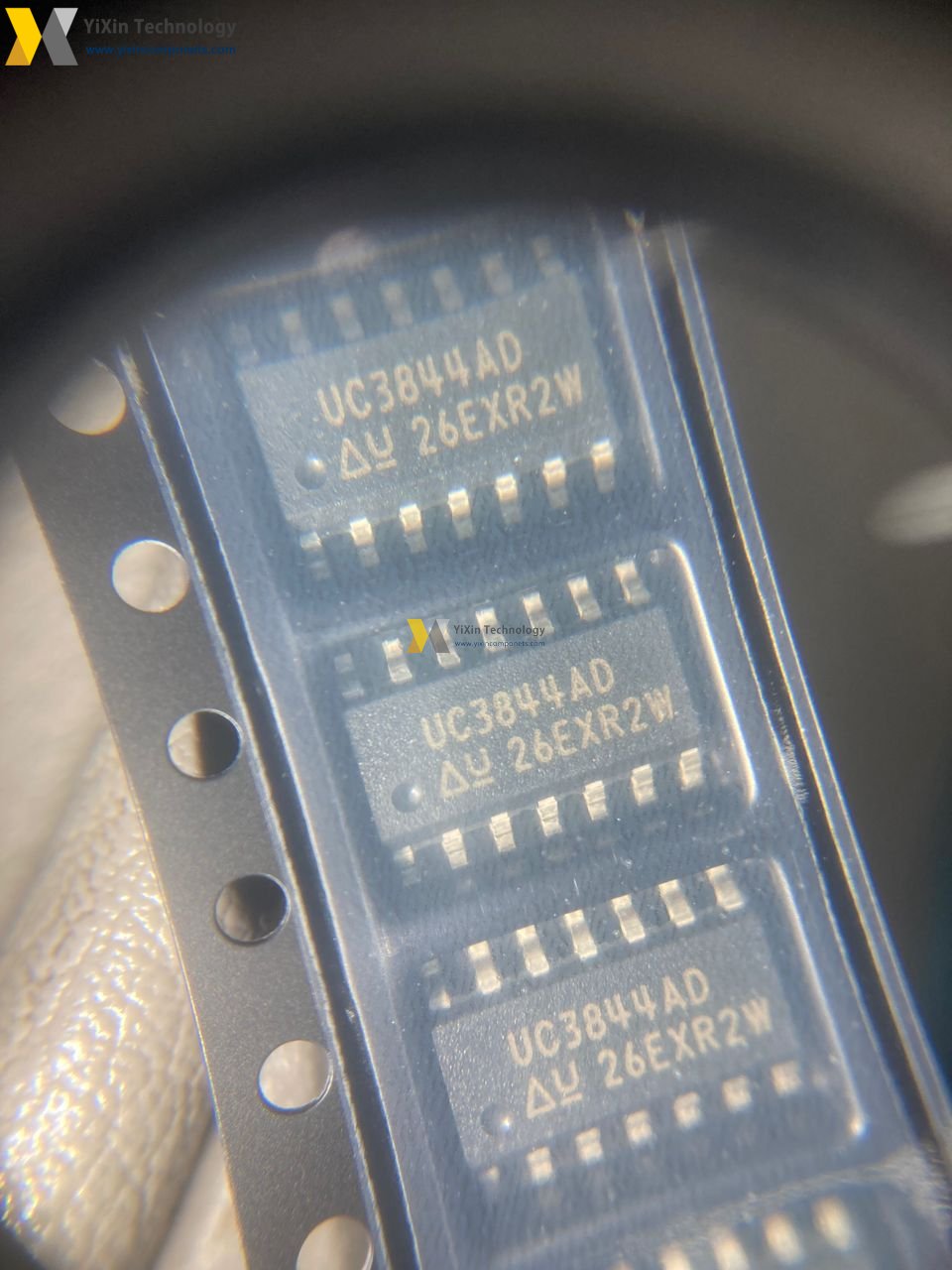

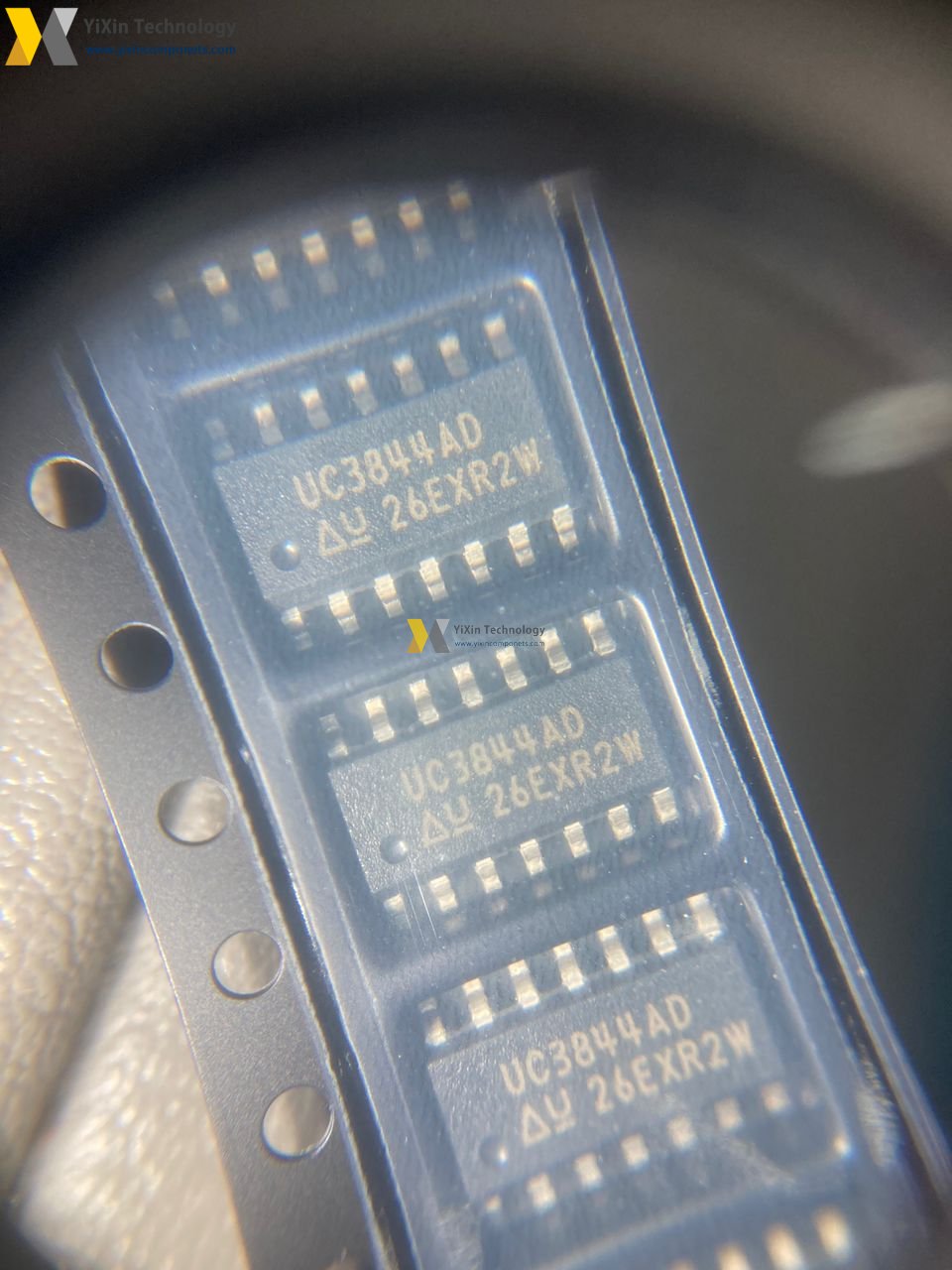

UC3844ADTR
| Part Number | UC3844ADTR |
| Manufacturer | Texas Instruments |
| Category | Power Management ICs |
| Description | IC REG CTRLR PWM CM 14SOIC |
UC3844ADTR Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | UC3844ADTR PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | Texas Instruments |
| Product Line | Semiconductors |
| Subcategory | Voltage Regulators - DC DC Switching Controllers |
| Series | - |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Buck, Buck-Boost, Flyback, Forward |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 10V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 48% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
Quick Inquiry
| In Stock | 413 - More on Order |
| Quote Limit | No Limit |
| Lead-Time | To be Confirmed |
| Minimum | 1 |
