| RoHS |
No RoHS Information |
| EDA/CAD Models |

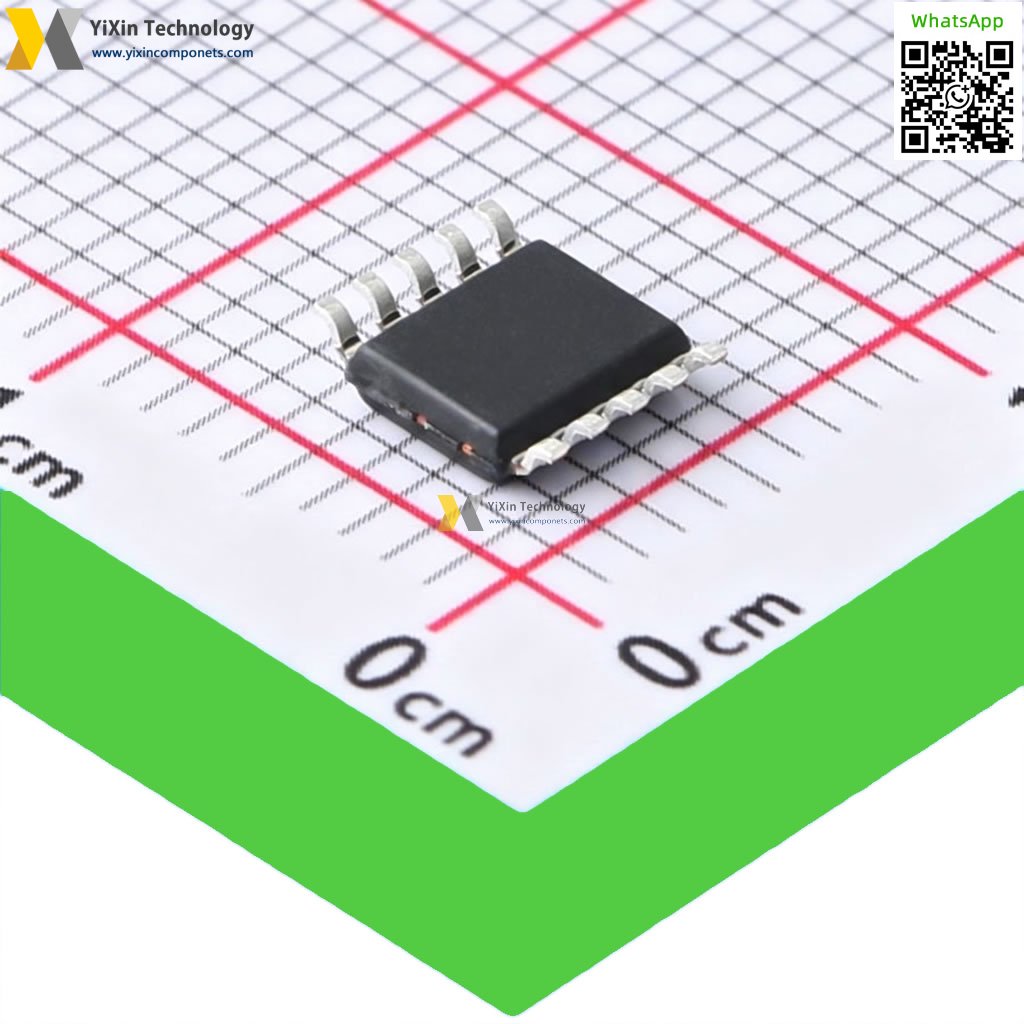

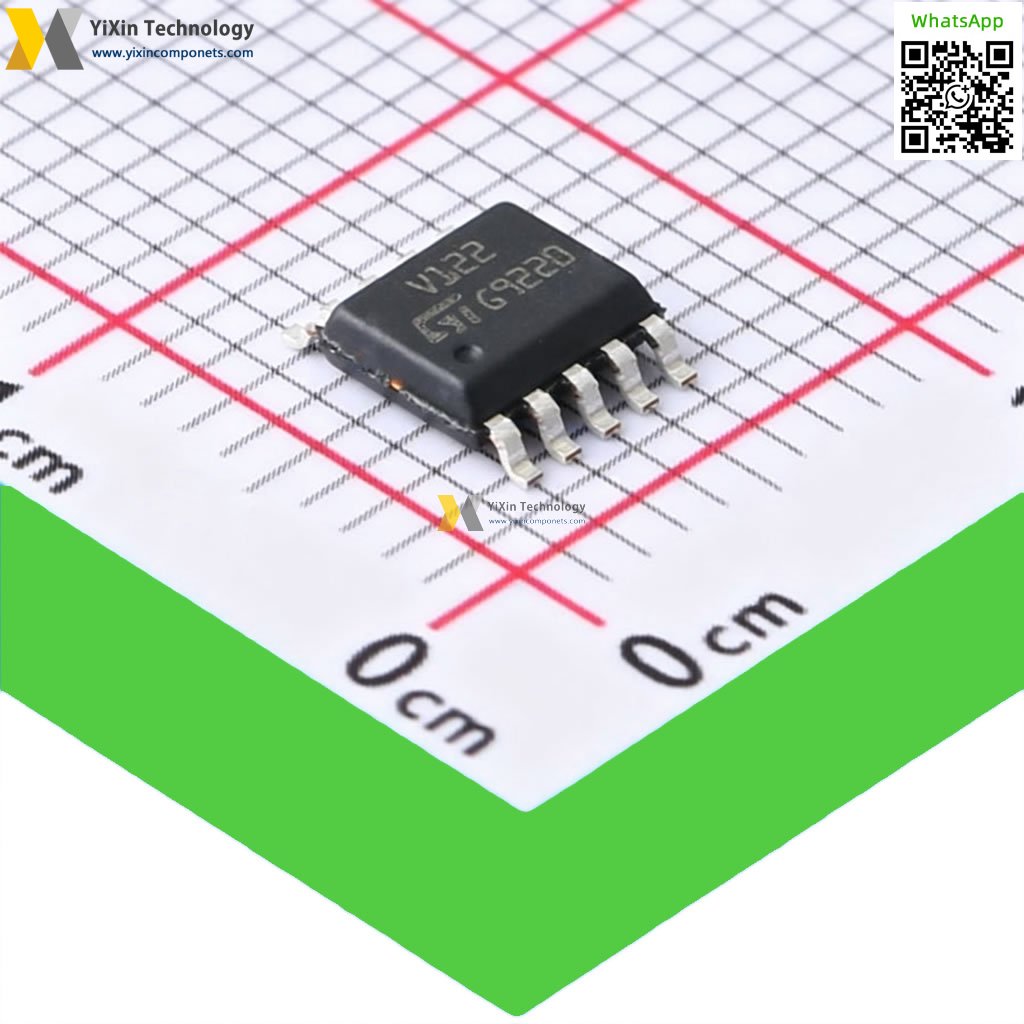

VIPER122LSTR PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
STMicroelectronics |
| Product Line |
Semiconductors |
| Subcategory |
AC DC Converters, Offline Switchers |
| Series |
- |
| Output Isolation |
Either |
| Internal Switch(s) |
Yes |
| Voltage - Breakdown |
730V |
| Topology |
Buck, Buck-Boost, Flyback |
| Voltage - Start Up |
13V |
| Voltage - Supply (Vcc/Vdd) |
11.5V ~ 23.5V |
| Duty Cycle |
80% |
| Frequency - Switching |
60kHz |
| Power (Watts) |
11W |
| Fault Protection |
Current Limiting, Short Circuit |
| Control Features |
- |
| Operating Temperature |
-40°C ~ 150°C (TJ) |
| Package / Case |
10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package |
10-SSOP |
| Mounting Type |
Surface Mount |
