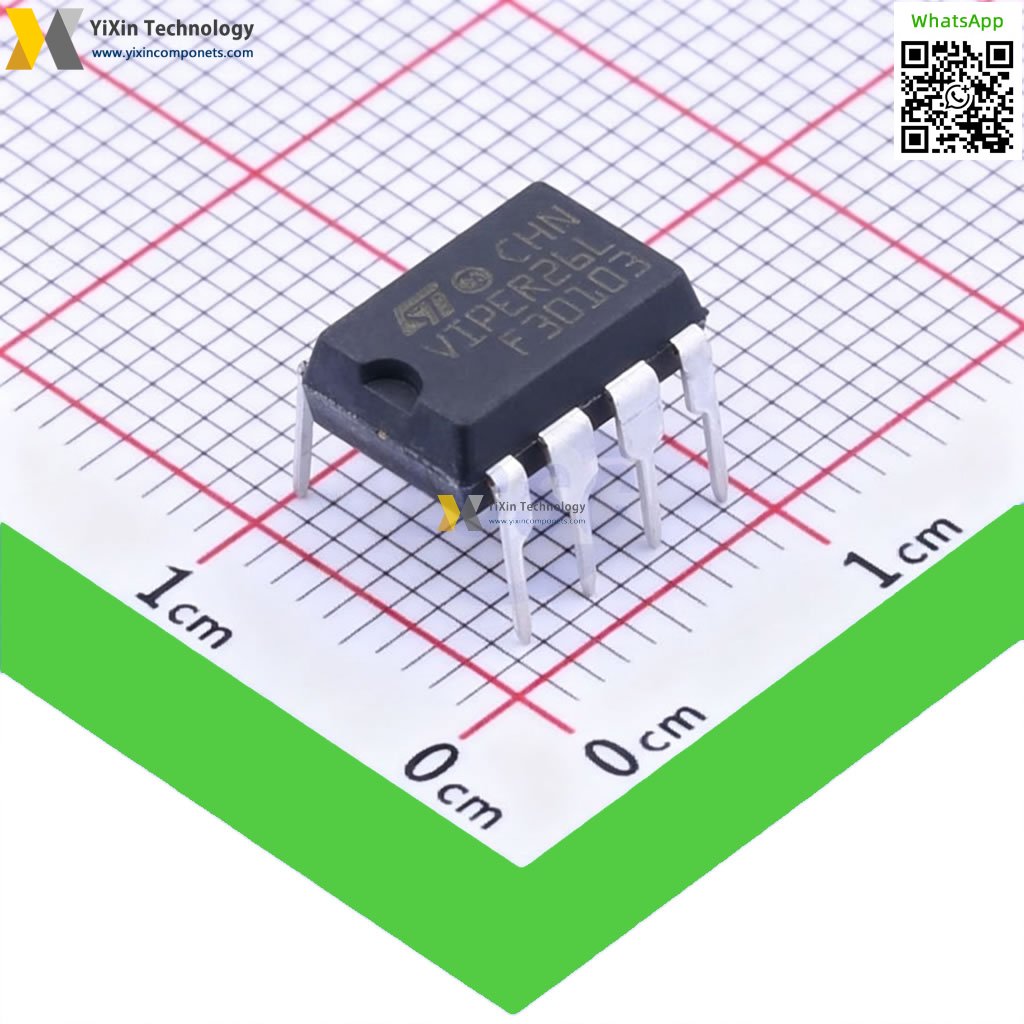

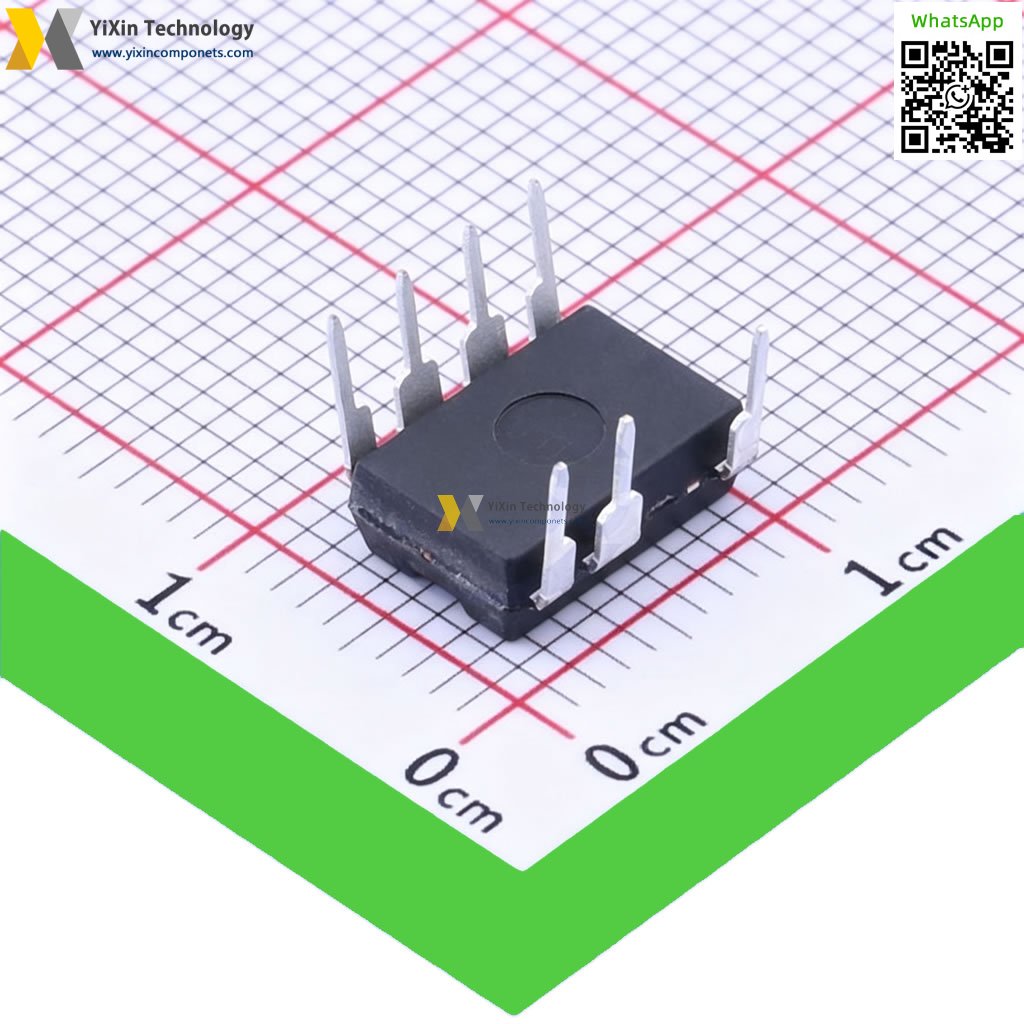

VIPER26LN
| Part Number | VIPER26LN |
| Manufacturer | STMicroelectronics |
| Category | Power Management ICs |
| Description | IC OFFLINE CONV PWM 800V 7-DIP |
VIPER26LN Specifications
| RoHS | No RoHS Information |
| EDA/CAD Models | VIPER26LN PCB Footprint and Symbol |
| Warranty | Up to 1 year [Limited-Warranty]* |
| Brand | STMicroelectronics |
| Product Line | Semiconductors |
| Subcategory | AC DC Converters, Offline Switchers |
| Series | VIPer™ plus |
| Output Isolation | Either |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Start Up | 13V |
| Voltage - Supply (Vcc/Vdd) | 11.5V ~ 23.5V |
| Duty Cycle | 70% |
| Frequency - Switching | 60kHz |
| Power (Watts) | 20W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-DIP |
| Mounting Type | Through Hole |
