| RoHS |
No RoHS Information
|
| EDA/CAD Models |
X00602MA 5AL2 PCB Footprint and Symbol |
| Warranty |
Up to 1 year [Limited-Warranty]* |
| Brand |
STMicroelectronics |
| Product Line |
Semiconductors |
| Subcategory |
SCRs |
| Series |
- |
| Voltage - Off State |
600V |
| Voltage - Gate Trigger (Vgt) (Max) |
800mV |
| Current - Gate Trigger (Igt) (Max) |
200µA |
| Voltage - On State (Vtm) (Max) |
1.35V |
| Current - On State (It (AV)) (Max) |
500mA |
| Current - On State (It (RMS)) (Max) |
800mA |
| Current - Hold (Ih) (Max) |
5mA |
| Current - Off State (Max) |
1µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) |
9A, 10A |
| SCR Type |
Sensitive Gate |
| Operating Temperature |
-40°C ~ 125°C |
| Mounting Type |
Through Hole |
| Package / Case |

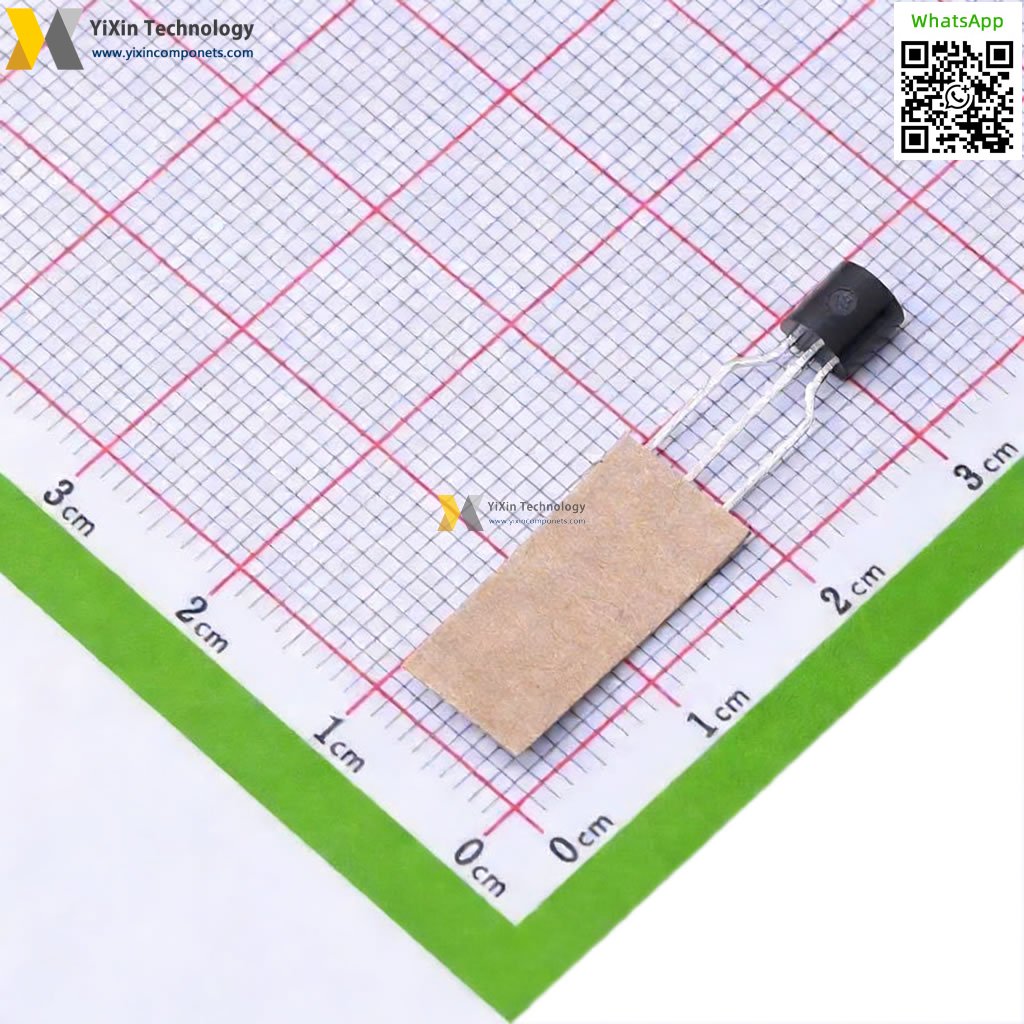

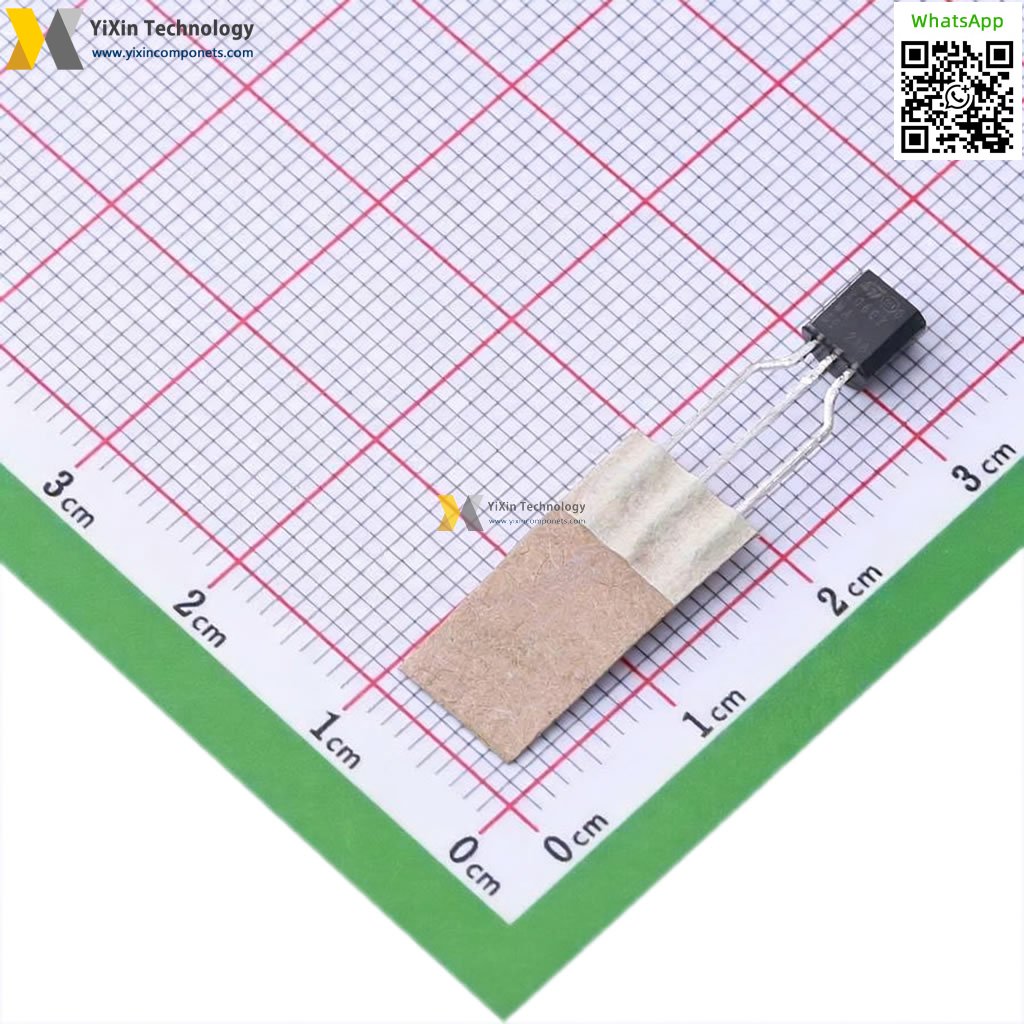

TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) |
| Supplier Device Package |
TO-92-3 |
